ROHM CSL0701DT5 High Brightness LED
The CSLO701x series comprises compact, low-profile LEDs with lenses, suitable for both top-view and side-view applications. These LEDs feature a size of 2.9 x 2.4mm with a thickness of 3.1mm, offering high luminous intensity with a maximum power of 120 mW and a forward voltage of approximately 2.0V. They operate within a temperature range from -40°C to +85°C, with recommended storage temperatures up to +100°C. Designed for reliable surface mounting, they accommodate reflow soldering, with specific profiles and precautions to ensure longevity, making them ideal for display, indication, and lighting systems requiring robust, high-brightness LEDs.
ROHM CSL0701DT5 High Brightness LED Specifications:
- Size: 2.9 x 2.4mm with thickness of 3.1mm
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +100°C
- Power Dissipation: 120 mW
- Forward Voltage: approximately 2.0V at 50mA
- Luminous Intensity: as specified for particular ranks
- Package Type: Surface-mount with lens
- Recommended Solder Pattern: designed for SMT processes
- Viewing Angle: specified in datasheet
- Reflow Soldering Profile: max 2 times with specific temperature and time conditions
- Delivered with moisture-proof packaging and desiccant

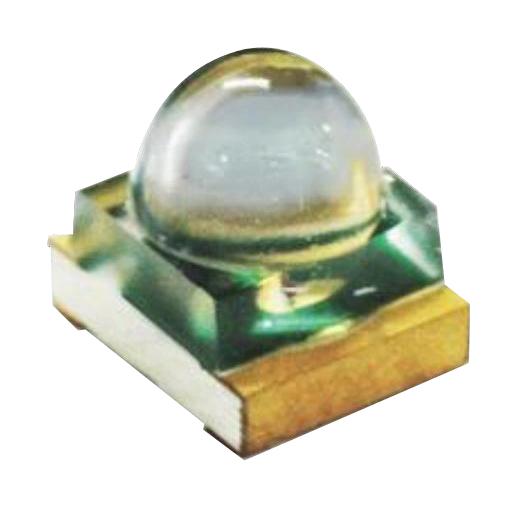

Buy the Buy Rohm CSLO701DT Part Number CSL0701DT5 Online
Purchase the Rohm CSLO701DT LED today—designed for high-lumen output in compact form, perfect for indication and display systems. Featuring advanced SMT compatibility, this LED ensures reliable soldering via carefully specified reflow profiles and moisture-proof packaging. Its robust construction allows operation over -40°C to +85°C, making it suitable for demanding environments. Whether for industrial, commercial, or consumer electronics, this high-quality LED provides excellent brightness, longevity, and ease of installation—order online now for quick delivery and professional support.
Get Rohm CSLO701DT now—engineered for high brightness with compact design and reliable surface mounting for durable electronic applications.
Frequently Asked Questions
Where can I buy ROHM CSL0701DT5?
You can click on the BUY or RFQ button to purchase CSL0701DT5 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part CSL0701DT5?
You can download the CSL0701DT5 datasheet or visit the ROHM website for support.
Who is the manufacturer of CSL0701DT5?
ROHM
