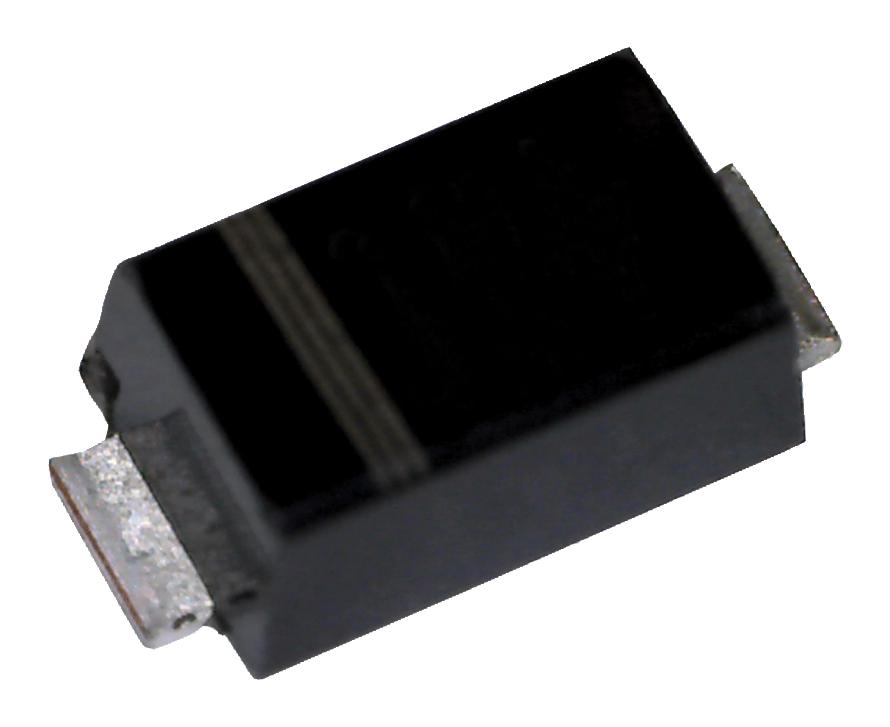

ROHM RBR1LAM60ATR Schottky Barrier Diode
The RBR1LAM60A is a high-reliability Schottky Barrier Diode designed for general rectification in power electronics. With a package code of 500-128 and a VR of 60V, it features an average rectified forward current of 1A and a peak surge current of 40A, making it suitable for various industrial applications. Its silicon epitaxial planar structure ensures low forward voltage drop of approximately 0.53V at 1A and minimal reverse current of 75 pA at 60V. Compact, durable, and efficient, this diode is ideal for high-speed switching, power supplies, and protection circuits.
ROHM RBR1LAM60ATR Schottky Barrier Diode Specifications:
- Package Code: 500-128
- VR (Repetitive Peak Reverse Voltage): 60 V
- Reverse Voltage (VR): 60 V
- Average Rectified Forward Current: 1 A at 60Hz, resistive load, Te=136°C
- Peak Forward Surge Current: 40 A
- Junction Temperature: -150°C
- Storage Temperature: -55°C to 150°C
- Forward Voltage: approximately 0.53V at 1A
- Reverse Current: 75 pA at VR=60V
- Structure: Silicon epitaxial planar
- Marking: 06
- Taping: Embossed tape, reel size 180 mm, width 12 mm, quantity 3000 pcs
- Dimensions (approximate): A=0.85-1.05mm, b=1.30-1.70mm, c=0.12-0.27mm, D=2.30-2.70mm, E=3.50-3.90mm, H=4.56-4.84mm
- Packaging: Tape with silicon epoxy mounted, marking indicates cathode, orientation as per datasheet
Buy the ROHM RBR1LAM60A – Reliable Schottky Barrier Diode for Industrial Applications
Secure your power electronics with the ROHM RBR1LAM60A Schottky Barrier Diode. Featuring 60V reverse voltage and 1A current capacity, this diode offers low forward voltage around 0.53V for efficient performance. Its compact, epoxy-mounted silicon epitaxial structure ensures high reliability, quick switching, and minimal heat generation. Ideal for use in power supplies, rectifiers, and protection circuits, this diode guarantees durability and high efficiency for demanding industrial applications. Order online today to enhance your electronic system’s performance with trusted quality.
Buy ROHM RBR1LAM60A now and experience unmatched reliability and performance in power rectification and switching circuits.
Frequently Asked Questions
Where can I buy ROHM RBR1LAM60ATR?
You can click on the BUY or RFQ button to purchase RBR1LAM60ATR from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part RBR1LAM60ATR?
You can download the RBR1LAM60ATR datasheet or visit the ROHM website for support.
Who is the manufacturer of RBR1LAM60ATR?
ROHM
