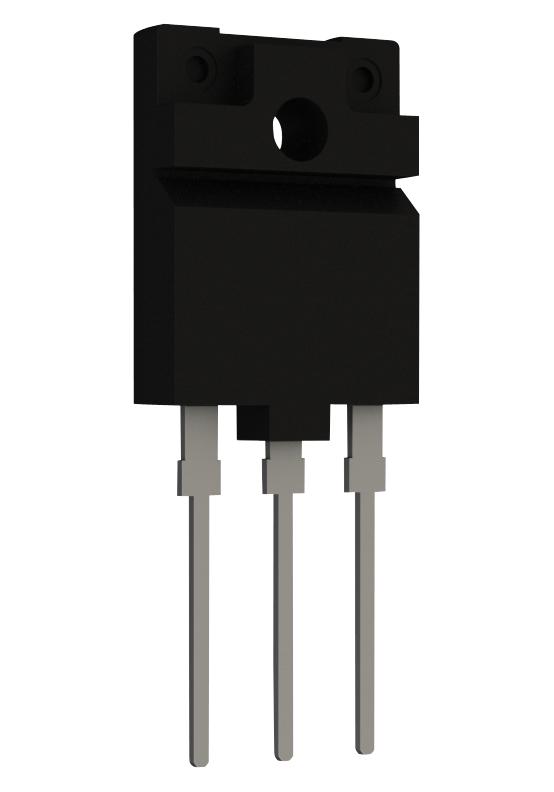

ROHM RGCL80TK60DGC11 Power IGBT Module
The RGCL80TK60D is a 600V, 40A IGBT with low saturation voltage, soft switching, built-in fast recovery diode, and RoHS compliance, designed for inductive load switching and inverter applications. It features a compact TO-3PFM package, high current pulse capability, and excellent thermal performance, making it suitable for power electronics, motor drives, and PFC circuits. The device offers reliable performance with low switching losses and high junction temperature tolerance, ensuring efficient and stable operation in demanding power conversion systems.
ROHM RGCL80TK60DGC11 Power IGBT Module Specifications:
- Collector - Emitter Voltage: 600 V
- Gate - Emitter Voltage: +30 V
- Collector Current: 35 A at 25°C, 21 A at 100°C
- Pulsed Collector Current: 160 A
- Diode Forward Current: 15 A
- Diode Pulsed Forward Current: 100 A
- Power Dissipation: 57 W at 25°C, 28 W at 100°C
- Operating Junction Temperature: -40 to +175°C
- Storage Temperature: -55 to +175°C
- Thermal Resistance (Junction - Case): 2.62 °C/W
- Thermal Resistance (Diode Junction - Case): 3.93 °C/W
- Gate Charge (Qg): 98 nC
- Gate - Emitter Charge: 20 - 38 nC
- Switching Losses: Eon 1.44 mJ, Eoff 1.68 mJ
- Reverse Bias Safe Operating Area: Full square
- Capacitances: Cies 2340 pF, Coos 55 pF, Cres 43 pF
