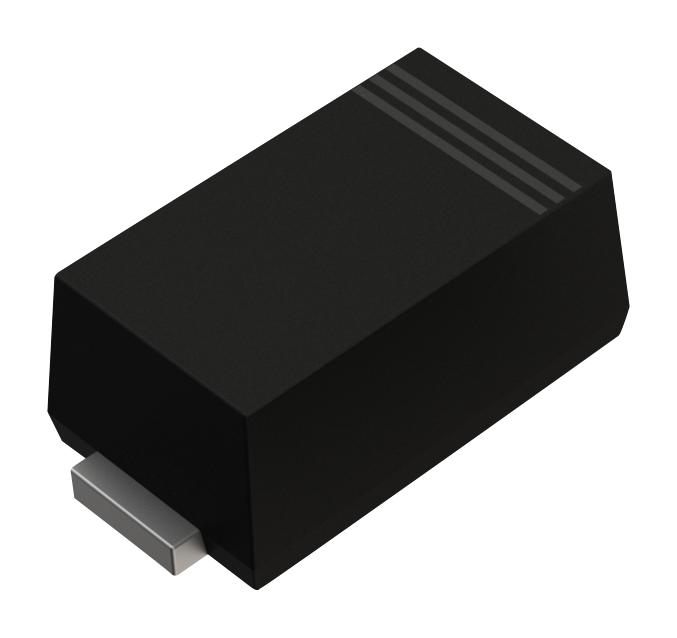

ROHM RSX201VAM30TR Schottky Diode
The RSX201VAM30 is a high-reliability Schottky barrier diode designed for general rectification applications. It features a small molded structure with low forward voltage drop and low reverse leakage current, making it suitable for efficient power management in electronic circuits. With a maximum repetitive peak reverse voltage of 30V and a forward current capacity of 4A, it ensures reliable operation under various thermal conditions. Packaged in an embossed tape for automated assembly, this diode is ideal for power supplies, converters, and other low-voltage rectification needs in consumer and industrial electronics.
ROHM RSX201VAM30TR Schottky Diode Specifications:
- Peak Repetitive Reverse Voltage: 30V
- Average Forward Rectified Current: 4A
- Peak Forward Surge Current: 8A
- Forward Voltage: 0.36V at 1A, 0.40V at 1.5A
- Reverse Current: 70pA at VR=30V
- Junction Temperature: -125°C to +125°C
- Storage Temperature: -55°C to +125°C
- Package Type: SOD-323HE (SC-1088)
- Taping Width: 8mm, Reel Size: 180mm
- Material: Silicon epitaxial planar
- Marking: D
- Dielectric Breakdown Voltage: 30V
- Maximum Operating Temperature: 125°C
- Dimensions: Min. 2.8mm x 1.58mm, Thickness approx. 0.25mm
- Absolute maximum ratings based on resistive load conditions at 15A and 60Hz sine waveform.
Buy the Buy ROHM RSX201VAM30 Part Number RSX201VAM30TR Online
Order the ROHM RSX201VAM30 Schottky diode online today to ensure efficient, reliable rectification in your power supply and electronic applications. Designed with a maximum repetitive peak reverse voltage of 30V and capable of handling 4A forward current, it features low forward voltage and leakage current for optimal performance. Packaged securely in embossed tape for streamlined manufacturing, this diode provides fast switching and high reliability, making it an essential component for consumer electronics, industrial systems, and low-voltage power circuits. Purchase now for consistent, long-lasting power management.
Get ROHM RSX201VAM30 diode today—built for high reliability in power rectification and low forward voltage loss.
Frequently Asked Questions
Where can I buy ROHM RSX201VAM30TR?
You can click on the BUY or RFQ button to purchase RSX201VAM30TR from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part RSX201VAM30TR?
You can download the RSX201VAM30TR datasheet or visit the ROHM website for support.
Who is the manufacturer of RSX201VAM30TR?
ROHM
