ROHM SML811VTT86A Surface Mount LED
The SML-811x/812x/813x series are surface-mount LEDs designed for reliable performance in various electronic applications. They feature reverse-mount options and are suitable for reflow soldering, with detailed guidelines provided for safe handling and soldering processes. These LEDs operate efficiently within recommended temperature ranges and exhibit stable luminous intensity characteristics. The series includes models with different colored emissions, optimized for optical clarity and electrical performance. Their dimensions are compact, with a typical size of 3.4 x 1.25mm, making them ideal for space-constrained designs in consumer electronics, industrial equipment, and automotive lighting.
ROHM SML811VTT86A Surface Mount LED Specifications:
- Dimensions: 3.4 x 1.25mm, thickness 1.1mm
- Operating temperature: -40°C to +85°C
- Storage temperature: -40°C to +85°C
- Soldering method: Reflow recommended; manual soldering temp less than 400°C within 3 sec.
- Materials: Aluminum-based package, epoxy lens
- Electrical specs vary by model; typically forward voltage around 2.0 to 3.4V at 20mA
- Luminous intensity varies; models feature different emission colors and wavelengths
- Peak temperature for reflow: 260°C for up to 10 seconds
- Applicable standards: RoHS compliant, Pb-free solder process
- Optical characteristics measured at 25°C, including dominant wavelength and luminous intensity

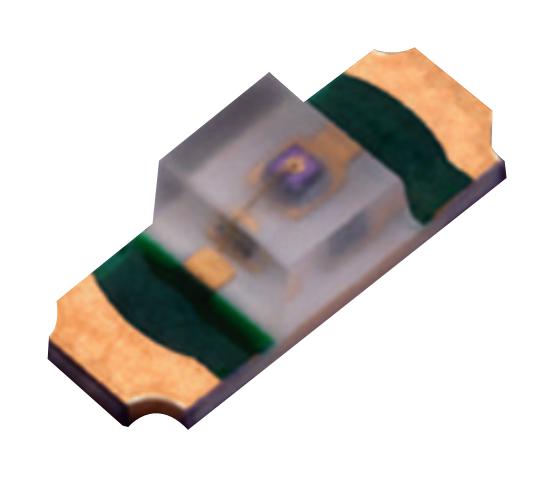

Buy the Buy ROHM SML-811VTT86A Part Number SML811VTT86A Online
Enhance your electronic assemblies with the reliable, high-quality surface mount LED. Perfect for auto, industrial, and consumer electronics, the SML-811VTT86A offers excellent brightness, stable performance, and easy reflow soldering. This compact LED is designed for space-efficient applications, supporting automatic and manual soldering methods. With detailed guidelines for handling and thermal management, it ensures durability and consistent optical performance. Buy online now to streamline your production process and achieve superior illumination in your equipment.
Order your ROHM SeriesSML-811VTT86A LED today and enhance your electronic projects with dependable high-brightness lighting solutions.
Frequently Asked Questions
Where can I buy ROHM SML811VTT86A?
You can click on the BUY or RFQ button to purchase SML811VTT86A from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part SML811VTT86A?
You can download the SML811VTT86A datasheet or visit the ROHM website for support.
Who is the manufacturer of SML811VTT86A?
ROHM
