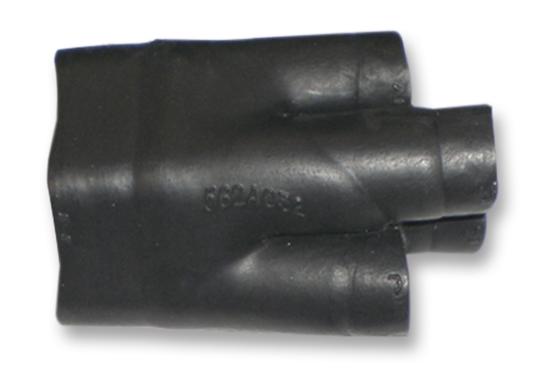

Raychem TE Connectivity 562A011250 Heat-shrink elastomer boot
The part is a black heat-shrink boot crafted from fluid-resistant elastomer, featuring a 1 to 4 transition configuration with four branches or legs. It offers exceptional resistance to high-temperature fluids and chemicals, making it ideal for protecting cable connectors, junctions, and break-outs in harness systems. When installed with adhesive S1125 at each interface, it guarantees excellent sealing, strain relief, and position retention. Its flame-retardant, abrasion-resistant design ensures reliable operation in demanding industrial, defense, aerospace, military, and communications environments across a temperature range of -75°C to 150°C. Suitable for various commercial applications, it is designed to meet modern high-performance standards.
Raychem TE Connectivity 562A011250 Heat-shrink elastomer boot Specifications:
- Material: Elastomer
- Color: Black
- Operating Temperature Range: -75°C to 150°C
- Transition Configuration: 1 to 4 branches
- Features: Flame-retardant, chemical-resistant, abrasion-resistant
- Installation: Shrinks above 135°C, recommended at 175°C
- Application: Cable connectors, junctions, harness protection
- Mechanical Strength: Tensile strength minimum 15 MPa
- Elongation: Minimum 350%
- Specific Gravity: 1.5 (max.)
- Chemical Resistance: Resistance to aerospace fuel JP-4, hydraulic fluid, diesel, and gasoline
- Electrical Strength: BMVim ASTM D 149
- Certifications: Military standards, ASTM D 2671 & D 635
- Additional: Exempts from discounts, high-performance designed for demanding use
Buy the TE Series 562A011250 High-Temperature Elastomer Boot: 562A011250
Purchase the TE 562A011250 heat-shrink elastomer boot online today. Designed for high-temperature environments, it provides excellent chemical and abrasion resistance. Ideal for protecting cables and connectors in industrial, military, aerospace, and communications applications. The boot features a 1 to 4 transition configuration with four branches, ensuring reliable sealing and strain relief. With a recommended installation temperature of 175°C, it guarantees durability and performance across a temperature range of -75°C to 150°C, making it an essential component for demanding environments and modern cable harness systems.
Buy TE 562A011250 high-temperature elastomer boot now and experience unmatched sealing, strain relief, and chemical resistance for demanding cable harness applications.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity 562A011250?
You can click on the BUY or RFQ button to purchase 562A011250 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part 562A011250?
You can download the 562A011250 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of 562A011250?
Raychem TE Connectivity
