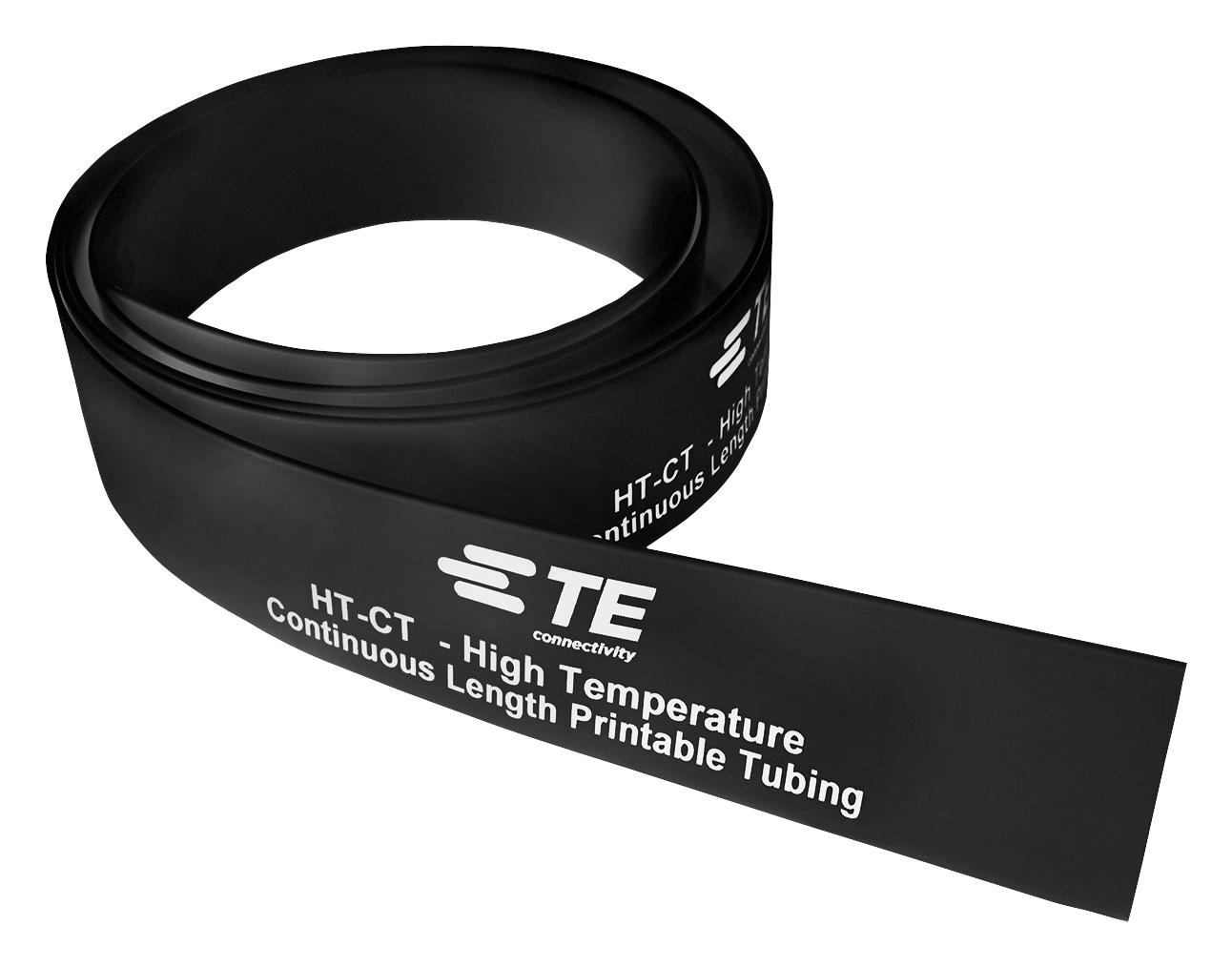

Raychem TE Connectivity HTCT50M14OUT0 Heat Shrink Tube
High Temperature Continuous Tube is a heat shrink identification system designed for wires and cables, capable of withstanding up to 225°C. Made from radiation cross-linked material, it offers excellent chemical resistance, flame retardancy, and compliance with RoHS and REACH standards. The thin-walled tube shrinks with e-beam technology, providing a firm hold on printed markers. Ideal for aerospace, military, rail, and industrial applications, it supports a 2:1 shrink ratio and comes in various diameters and colors for versatile use with specific printers and ribbons.
Raychem TE Connectivity HTCT50M14OUT0 Heat Shrink Tube Specifications:
- Operating Temperature Range: 55°C to 225°C (-67°F to 437°F)
- Shrink Ratio: 2:1
- Inside Diameters: from 3/32 inch (0.094 inch) to 1-1/2 inch (1.50 inch)
- Lengths: 50 meters (164 feet) per spool
- Material: Radiation cross-linked formulation, flame retarded, UL VW-1 rated
- Chemical Resistance: Excellent against aerospace, military, rail, and industrial fluids
- Compliance: RoHS II, REACH
- Color Options: Yellow, White, Brown, Red, Orange, Green, Blue, Violet, Grey, Black
- Application compatibility: Specific printers and thermal ribbons recommended for optimal print performance
Buy the TE Connectivity HT-CT – Reliable Heat Shrink Identification System for Industrial Applications
Purchase TE Connectivity HT-CT heat shrink tube online today—designed for high temperature wire and cable identification, ensuring excellent chemical resistance, flame retardancy, and compliance with industry standards. This advanced radiation cross-linked sleeve withstands up to 225°C, making it ideal for aerospace, military, and industrial environments. Its 2:1 shrink ratio and wide diameter options provide versatility for various cable sizes. Use with specific printers and ribbons for optimal print quality, and enjoy fast, reliable delivery for your project needs.
Get TE Connectivity HT-CT today—built for precise wire identification and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity HTCT50M14OUT0?
You can click on the BUY or RFQ button to purchase HTCT50M14OUT0 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part HTCT50M14OUT0?
You can download the HTCT50M14OUT0 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of HTCT50M14OUT0?
Raychem TE Connectivity
