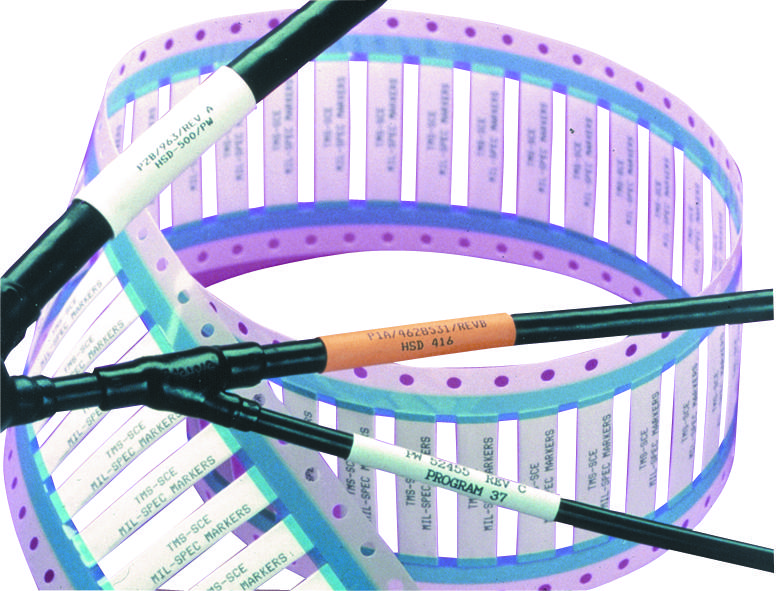

Raychem TE Connectivity TMSSCE18209 Heat Shrink Cable Marker
The TMS-SCE-1/8-2.0-9 is a military-grade heat-shrinkable wire identification sleeve designed for high-performance wire and cable marking. Crafted from durable, flame-retardant, radiation cross-linked polyolefin, this sleeve offers excellent protection and permanent identification. It is compatible with computer-driven dot matrix or thermal transfer printers, allowing for quick, accurate, and cost-effective printing. Features include easy recovery in heat-sensitive areas, compliance with military specifications for flame resistance, and suitability for aerospace applications due to its lightweight construction. Ideal for defense, military, and aerospace industries, this marker sleeve provides reliable, long-lasting identification for critical wiring systems.
Raychem TE Connectivity TMSSCE18209 Heat Shrink Cable Marker Specifications:
- Material: Radiation cross-linked polyolefin
- Flame Retardant: Yes
- Compatibility: Dot matrix and thermal transfer printers
- Minimum Recovery Temperature: +85°C +185°F
- Maximum Storage Temperature: +40°C +104°F
- Shrink Ratios: 2:1 and 3:1
- Inside Diameter (Minimum): 2.36 mm (0.093 inches)
- Outer Diameter (Recovered): 0.79 mm (0.031 inches)
- Wall Thickness: 0.032-0.075 inches (adjusts with shrink ratio)
- Color Options: White, yellow, and others
- Part Number Example: TMSSCE18209
- Certifications: UL Recognized, CSA Certified, MIL-STD-202, SAE-AMS-DTL-23053/5
Buy the Tyco Electronics TMSSCE18209 – Reliable Military-Grade Heat Shrinkable Wire Markers for Industrial Applications
Purchase Tyco Electronics TMSSCE18209 heat shrinkable wire identification sleeves online today and ensure your critical wiring systems are protected with durable, flame-retardant, environmentally resistant markings. These military-grade sleeves are compatible with high-speed printers, providing accurate and permanent labeling in aerospace, defense, and industrial environments. Designed for ease of use and quick shrinking, they resist abrasion, oils, fuels, and chemicals while maintaining legibility after exposure. Order now to secure reliable and compliant wire management solutions for your complex projects.
Get Tyco Electronics TMSSCE18209 today—built for precision and long-lasting durability in military and aerospace wiring identification.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity TMSSCE18209?
You can click on the BUY or RFQ button to purchase TMSSCE18209 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part TMSSCE18209?
You can download the TMSSCE18209 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of TMSSCE18209?
Raychem TE Connectivity
