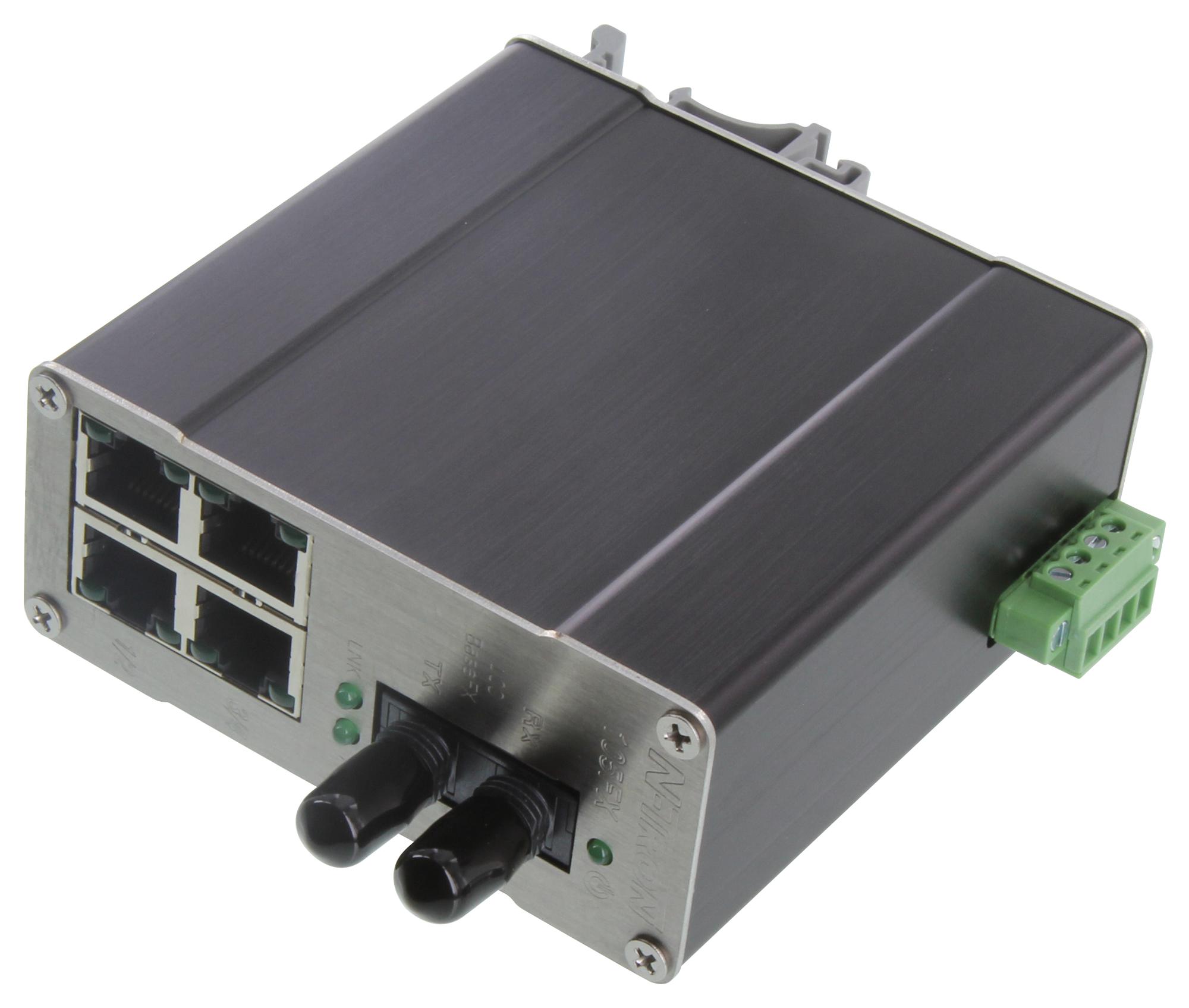

Red Lion Controls 105FXST Industrial Ethernet Switch
The N-TRON 105FX Industrial Ethernet Switch is a rugged, unmanaged five-port device designed for industrial environments, featuring four 10/100BaseTX RJ-45 ports and one 100BaseFX fiber optic port. It supports full/half duplex operation, auto-sensing speed, duplex, and MDIX, with high throughput up to 1.0Gb/s. The switch operates reliably in harsh conditions from -40°C to 70°C, with redundant power inputs and a compact DIN-Rail metal enclosure, making it ideal for industrial data acquisition, control, and Ethernet I/O systems.
Red Lion Controls 105FXST Industrial Ethernet Switch Specifications:
- Case Dimensions: Height 3.5 inches, Width 1.5 inches, Depth 3.6 inches, Weight 0.6 lbs.
- DIN-Rail mount included, Power input 10-30 VDC, 270M @24V, 22.1@24VDC, 8.0Amp/0.7ms@24V.
- Operating Temperature: -40°C to 70°C, Storage Temperature: -40°C to 85°C, Humidity: 10% to 95% (non-condensing).
- Network Media: 10BaseT, 100BaseTX, 100BaseFX (multimode: 50-62.5/125μm, singlemode: 7-10/125μm), fiber length up to 80km.
- Connectors: Four RJ-45 ports, one ST or SC duplex port, supports auto sensing, full/half duplex, 1Gb/s throughput, LED status indicators.
- Regulatory Compliance: FCC, CE EN61000-6-2, UL/cUL hazardous locations, Type Approved by ABS and DNV-GL, IEEE 1613, NEMA TS1/TS2.
Buy the N-Tron Series 105FX Industrial Ethernet Switch: 105FX
Upgrade your industrial network with the N-Tron 105FX Ethernet switch, offering rugged construction, fiber optic uplink, and high data throughput. Its compact, DIN-Rail design ensures easy installation in harsh environments and supports extended temperature ranges from -40°C to 70°C. With redundant power inputs, LED status indicators, and high reliability exceeding 2 million hours MTBF, it enhances network determinism, reduces collisions, and simplifies wiring for data acquisition and control applications. Make your industrial communication resilient and efficient by ordering online today!
Buy N-Tron 105FX now and experience unmatched reliability and high-performance industrial networking in rugged environments.
Frequently Asked Questions
Where can I buy Red Lion Controls 105FXST?
You can click on the BUY or RFQ button to purchase 105FXST from an authorized Red Lion Controls distributor.
How do I troubleshoot issues or seek technical support for part 105FXST?
You can download the 105FXST datasheet or visit the Red Lion Controls website for support.
Who is the manufacturer of 105FXST?
Red Lion Controls
