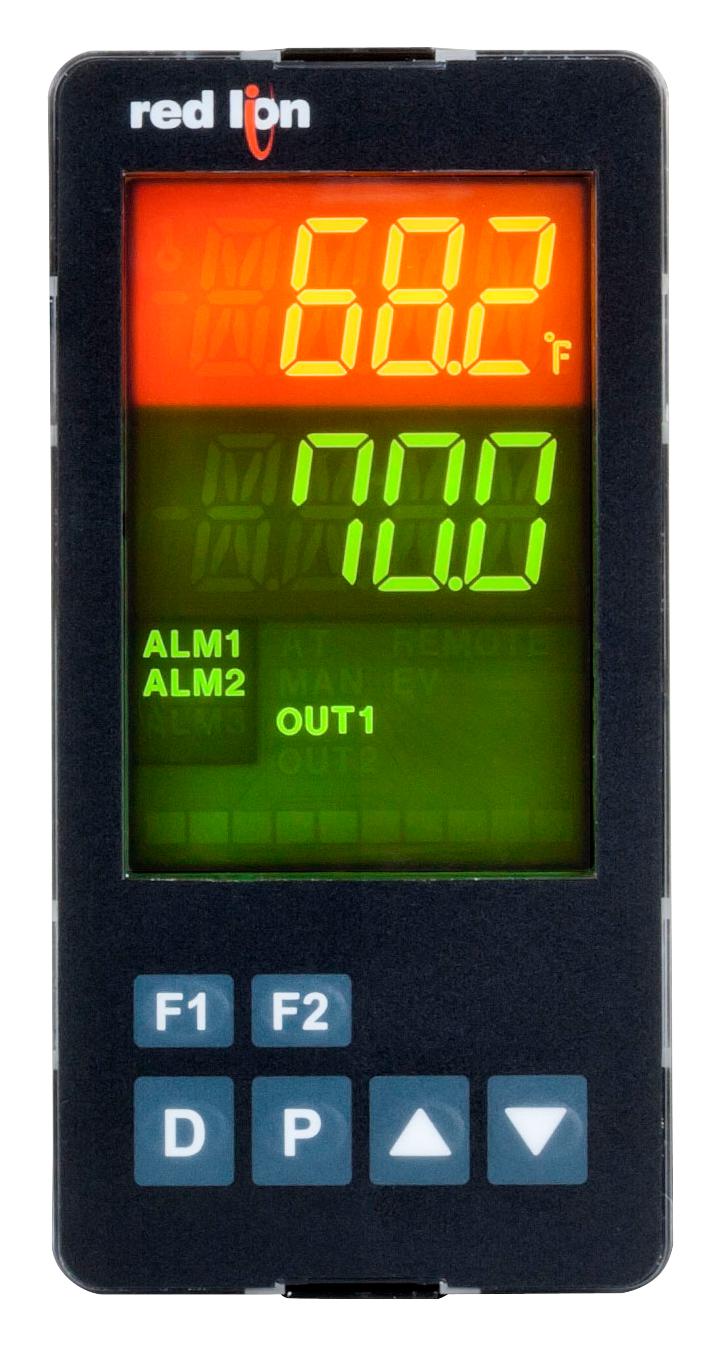

Red Lion Controls PXU31D30 Process Controller
The PXU Series PID controllers are versatile industrial process control devices suitable for applications like food & beverage, factory automation, manufacturing, plastics, and automotive. They feature universal inputs including thermocouple, RTD, 0-10 VDC, and 4-20 mA, with options for ramp/soak, a second analog input/output, and current transducer inputs. These controllers offer full PID control, auto-tuning, dual relay alarms, and easy setup via front panel or Crimson software. Encased in IP65 rated black plastic, they support multiple configurations for precise temperature and process management in demanding environments.
Red Lion Controls PXU31D30 Process Controller Specifications:
- Display: LCD transmissive with backlighting, 4 digits per line, sizes range from 0.43" to 0.87" depending on model
- Inputs: Thermocouple, RTD, 0-10 VDC, 4-20 mA, with optional current transducer
- Control: Full PID with on-demand auto-tuning, ramp/soak capability, independent outputs
- Outputs: Digital relay alarms, dual relay or analog outputs (0-10 VDC, 4-20 mA)
- Power Supply: 100-240 VAC or 24 VDC (model dependent)
- Communication: RS-485 serial interface (optional)
- Environmental: Operating temp 0-50°C, storage -20 to 65°C, humidity up to 80%, vibration 1 g at 10-85 Hz
- Certifications: CE approved, UL Listed, EN 61326-1 immunity, CE marking
- Enclosure: Black plastic, IP65 rated faceplate, module dimensions range from 1/16 to 1/4 DIN size, weight varies by model
- Additional features include digital potentiometer, front panel push-button programming, and compliance with industrial safety standards.
Buy the Red Lion PXU31D30 – Reliable PID Controller for Industrial Applications
Enhance your industrial automation systems with the Red Lion PXU31D30 process controller. Featuring universal inputs, full PID control, auto-tuning, and dual alarms, it ensures precise temperature and process management. Its IP65 rated enclosure provides durability in harsh environments, while easy setup via front panel or Crimson software simplifies installation. Ideal for food & beverage, manufacturing, plastics, and automotive applications, this reliable controller delivers exceptional performance and flexibility for your automation needs. Purchase online today for efficient process control.
Buy Red Lion PXU31D30 now and experience unmatched reliability and accurate process control in demanding industrial environments.
Frequently Asked Questions
Where can I buy Red Lion Controls PXU31D30?
You can click on the BUY or RFQ button to purchase PXU31D30 from an authorized Red Lion Controls distributor.
How do I troubleshoot issues or seek technical support for part PXU31D30?
You can download the PXU31D30 datasheet or visit the Red Lion Controls website for support.
Who is the manufacturer of PXU31D30?
Red Lion Controls
