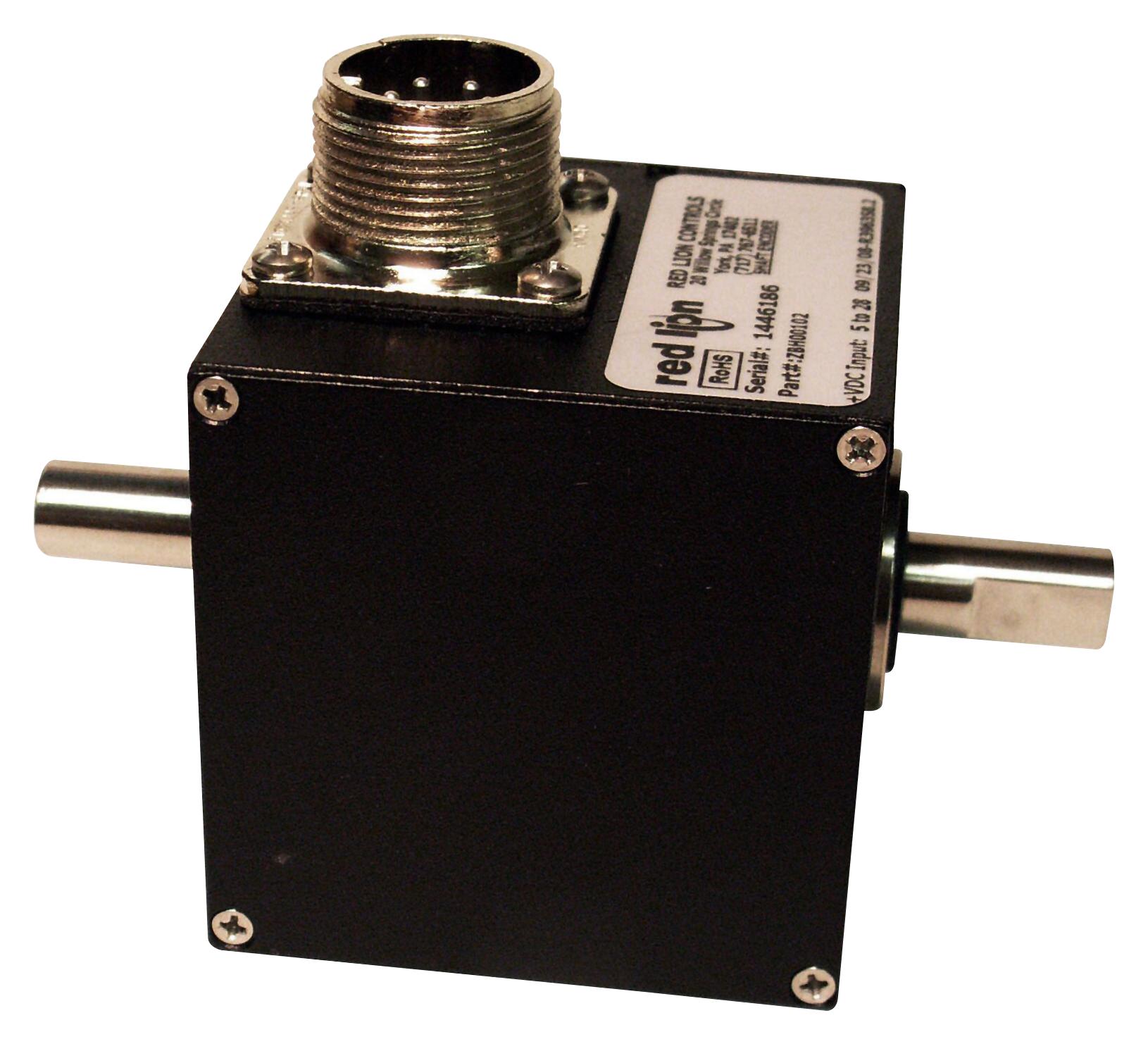

Red Lion Controls ZBG12002 Industrial Rotary Encoder
The ZBG12002 is a high-precision rotary encoder designed for industrial applications. It features a current sinking output with high pulse per revolution rates up to 1270 PPR, suitable for slow shaft speeds and accuracy measurement. With a maximum shaft speed of 6000 RPM, it includes sealed bearings and a robust aluminum housing for durability. The encoder supports voltage supply from 4.75 to 28 VDC, and its quadrature output enables bi-directional position tracking essential for automation systems. Ideal for industrial machinery requiring reliable feedback mechanisms.
Red Lion Controls ZBG12002 Industrial Rotary Encoder Specifications:
- Supply Voltage: +4.75 to +28 VDC @ 80 mA max.
- Output: Current sinking, 250 mA max per channel
- Maximum Frequency: 20 KHz
- Maximum Shaft Speed: 6000 RPM
- Shaft Diameter: 0.375 inches (9.5 mm)
- Radial Shaft Load: 40 lbs (18 kg)
- Axial Shaft Load: 30 lbs (13.6 kg)
- Starting Torque: 0.38 oz-in (2.68 N-mm)
- Housing: Black anodized aluminum
- Bearings: Double sealed ABEC3 ball bearings
- Environmental: Operating temperature 0°C to 100°C, humidity up to 98% RH
- Connectors: 6-pin MS style or 8-pin M12 connector
- Dimensions: Shaft length 0.75 inches (18 mm), housing approximate diameter 3.75 inches (95 mm)
Buy the Buy Industrial Rotary Encoder Part Number ZBG12002 Online
Purchase the ZBG12002 industrial rotary encoder online today to enjoy reliable performance in demanding industrial environments. Its high pulse rate up to 1270 PPR ensures precision speed and position measurement. The robust aluminum housing and sealed bearings provide long-lasting durability, vital for industrial applications. Compatible with various connectors, it supports a wide voltage range from 4.75 to 28 VDC. Order now to enhance your automation system’s efficiency with this high-quality, precision feedback device, and experience seamless integration for your machinery needs.
Buy industrial rotary encoder ZBG12002 now and elevate your machinery’s accuracy with durable, sealed-bearing design for continuous industrial use.
Frequently Asked Questions
Where can I buy Red Lion Controls ZBG12002?
You can click on the BUY or RFQ button to purchase ZBG12002 from an authorized Red Lion Controls distributor.
How do I troubleshoot issues or seek technical support for part ZBG12002?
You can download the ZBG12002 datasheet or visit the Red Lion Controls website for support.
Who is the manufacturer of ZBG12002?
Red Lion Controls
