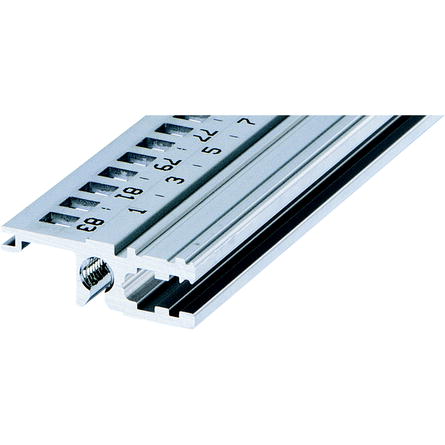

SCHROFF 34560640 EuropacPRO Subrack System
SCHROFF EuropacPRO subracks are designed to provide a robust and flexible framework for electronic systems. These subracks are suitable for a wide range of applications, including CompactPCI and VME64x systems. They offer various configuration options, including kits with pre-fitted components and individual components for custom builds. Features include sequential numbering for positioning, ESD protection clips, and optional EMC shielding. The subracks are designed to meet industry standards for dimensions, protection, and EMC testing, ensuring reliable performance in demanding environments.
SCHROFF 34560640 EuropacPRO Subrack System Specifications:
- Standards/Certifications: IEC 60297-3-100, -101, - 102, -103, -104, -105, IEEE 1101.1, IEEE 1101.10/11, IEC 60529, IEC 61587-3, BN 411002, BN 411003, NF F 60002, NF F 67012, IEC 61587-2, EN 50155, KTA 1401
- Type of Protection: IP 20
- Shock and Vibration Resistance: Up to 5 g
- Available Data: 3D PDF or CAD 3D data
- Configuration Options: Kits or individual configuration
- Compatibility: Suitable for CompactPCI and VME64x insertion and extractor handles
- EMC Shielding: Can be retrofitted
- Load Capacity: Up to 7.5 kg, 11 kg, or 15 kg
- Delivery Comprises (Kit): Side panels, front/rear horizontal rails, threaded inserts, insulation strip, fixing material kit, user manual
- Depth D: 175 mm
- Depth D1: 175/235/295 mm
- Part No (84x175x3U): 24564-131
- Part No (84x235x3U): 24564-132
- Part No (84x295x3U): 24564-133
- Part No (84x175x6U): 24564-431
- Part No (84x235x6U): 24564-432
- Part No (84x295x6U): 24564-433
- Accessory Part No (Assembly Kit): 21100-435
- Guide Rail Part No (160mm): 24560-351
- Guide Rail Part No (220mm): 24560-353
- Guide Rail Part No (280mm): 24560-379
- ESD Clip Part No: 24560-255
- Cover Plate Part No (160mm): 24561-051
- Cover Plate Part No (220mm): 24561-052
