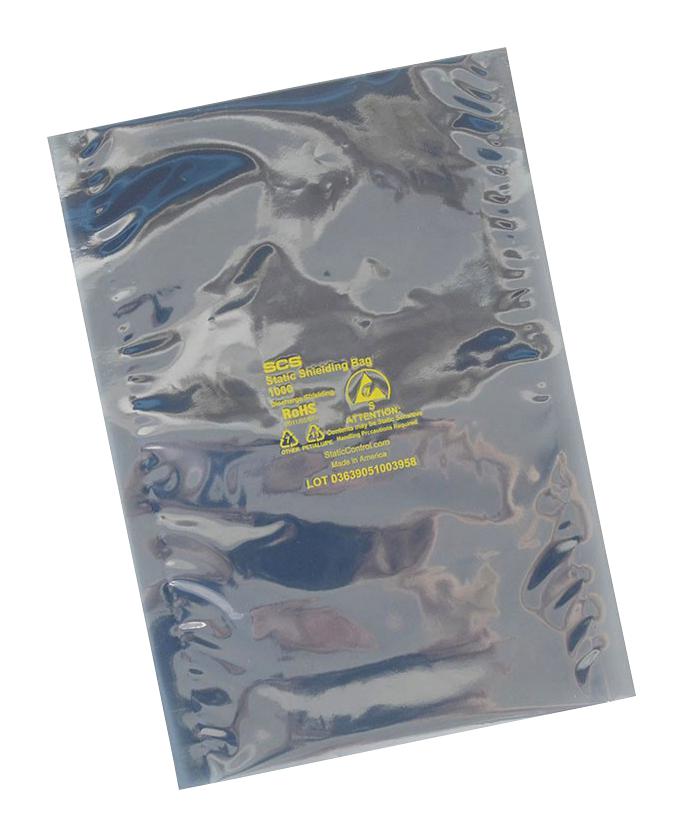

SCS 100610 Static Shielding Bag
SCS 100610 static shielding bags are engineered to create a static-safe environment for sensitive electronic components. Constructed from a robust polyester, metal, and polyethylene laminate, these bags offer exceptional discharge shielding and a static dissipative exterior. They are ideal for protecting circuit boards, semiconductors, and other ESD-sensitive devices during storage and transportation. The bags meet ANSI/ESD standards and are heat sealable for secure closure. Manufactured in the United States, these bags ensure reliable protection and traceability for critical electronic components.
SCS 100610 Static Shielding Bag Specifications:
- Tensile Strength: 4600 PSI, 32 MPa ASTM D882
- Puncture Resistance: 12 lbs, 53 N MIL-STD-3010C Method 2065
- Seal Strength: 11 lbs, 48 N ASTM D882
- Thickness: 2.8 mils, 0.071 mm +/-10% MIL-STD-3010C Method 1003
- Marking Adhesion: Pass IPC-TM-650 2.4.1
- Transparency: 40% Tobias
- ESD Shielding: <10 nJ ANSI/ESD STM11.31
- Surface Resistance (Exterior): < 1 x 10 [4] to < 1 x 10 [11] ohms ANSI/ESD STM11.11
- Surface Resistance (Interior): < 1 x 10 [11] ohms ANSI/ESD STM11.11
- Static Decay: < 2 seconds ETS 406D
- Silicone: Not Detected FTIR
- Heat Sealing Temperature: 300ºF – 375°F, 149ºC – 190°C
- Heat Sealing Time: 0.5 – 3.5 seconds
- Heat Sealing Pressure: 30 – 70 PSI, 206 – 482 KPa
- Material Composition: Polyester, metal, polyethylene laminate
- Meets Standards: ANSI/ESD S20.20, Packaging standard ANSI/ESD S541, and Static Control Bag ANSI/ESD S11.4 Level 3
Buy the 100610 SCS Static Shielding Bag | myMectronic
Secure your sensitive electronics with the SCS 100610 static shielding bag – purchase with confidence today.
