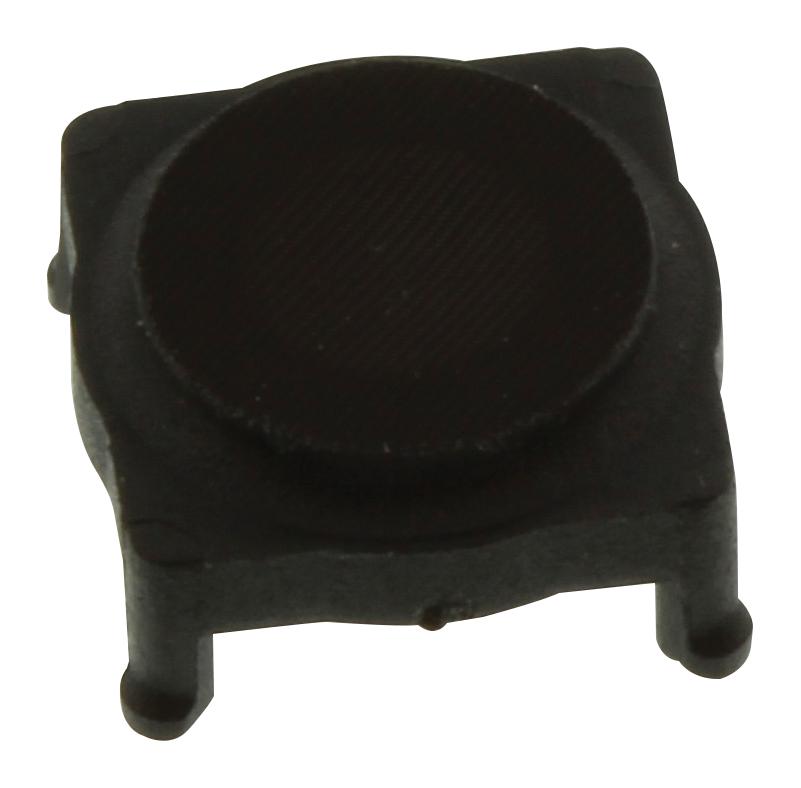

SENSIRION SF2 Sensor Protection Cover
The filter cap SF2 is a protection device for humidity and temperature sensors, specifically designed for SHT2x DFN sensors. Made of durable PBT with a PTFE filter membrane, it ensures minimal response time impact while providing dust and water immersion protection. Mountable after soldering by clipping onto PCB pins, it enables a waterproof seal with added adhesive and O-ring options for higher protection. Suitable for outdoor environmental sensing, it features IP67 ingress protection, high filtration efficiency, and resistance against hydrocarbons, ensuring reliable operation in demanding conditions.
SENSIRION SF2 Sensor Protection Cover Specifications:
- Body Material: Polybutylene Terephthalate (PBT)
- Filter Material: PTFE with polyester scrim
- Filter Thickness: 0.13 mm
- Filter Pore Size: 1.5 um
- Filtration Efficiency: 99.99%
- Color: Black
- UL94 V-0
- Operating Range: -55°C to +125°C
- Ingress Protection: IP67
- Hydrostatic Pressure: >100mbar (>1m water)
- Suitable for mounting on PCB with 0.8mm thick
- Compatible with SHT2x sensors
- Housing Compatibility: Mounts against device housing wall with optional O-ring for water sealing
- Mounting: Clips onto PCB pins or fixed with adhesive
- Additional sealing with adhesive recommended for hermetic protection
- Dimensions: Includes cavity designed to fit SHT2x sensors with minimal volume impact
- Designed for outdoor environmental sensing applications
- Resistant to hydrocarbons and oil according to AATCC 118-1992 rating 8
Buy the Sensirion Series SF2 Filter Cap: Dust & Water Protection for Sensors
Purchase the Sensirion SF2 filter cap online today to enhance your humidity and temperature sensor reliability. Designed with high-performance PTFE filters and durable PBT body, it offers IP67 water and dust protection, minimal response time impact, and easy mounting with clips or adhesive. Ideal for outdoor sensing applications, it ensures your device remains protected against contaminants and water immersion. Order now for a robust, reliable sensor enclosure solution that guarantees long-lasting operation in harsh environments.
Get Sensirion SF2 filter cap today—built for dust, water resistance, and outdoor environmental reliability.
Frequently Asked Questions
Where can I buy SENSIRION SF2?
You can click on the BUY or RFQ button to purchase SF2 from an authorized SENSIRION distributor.
How do I troubleshoot issues or seek technical support for part SF2?
You can download the SF2 datasheet or visit the SENSIRION website for support.
Who is the manufacturer of SF2?
SENSIRION
