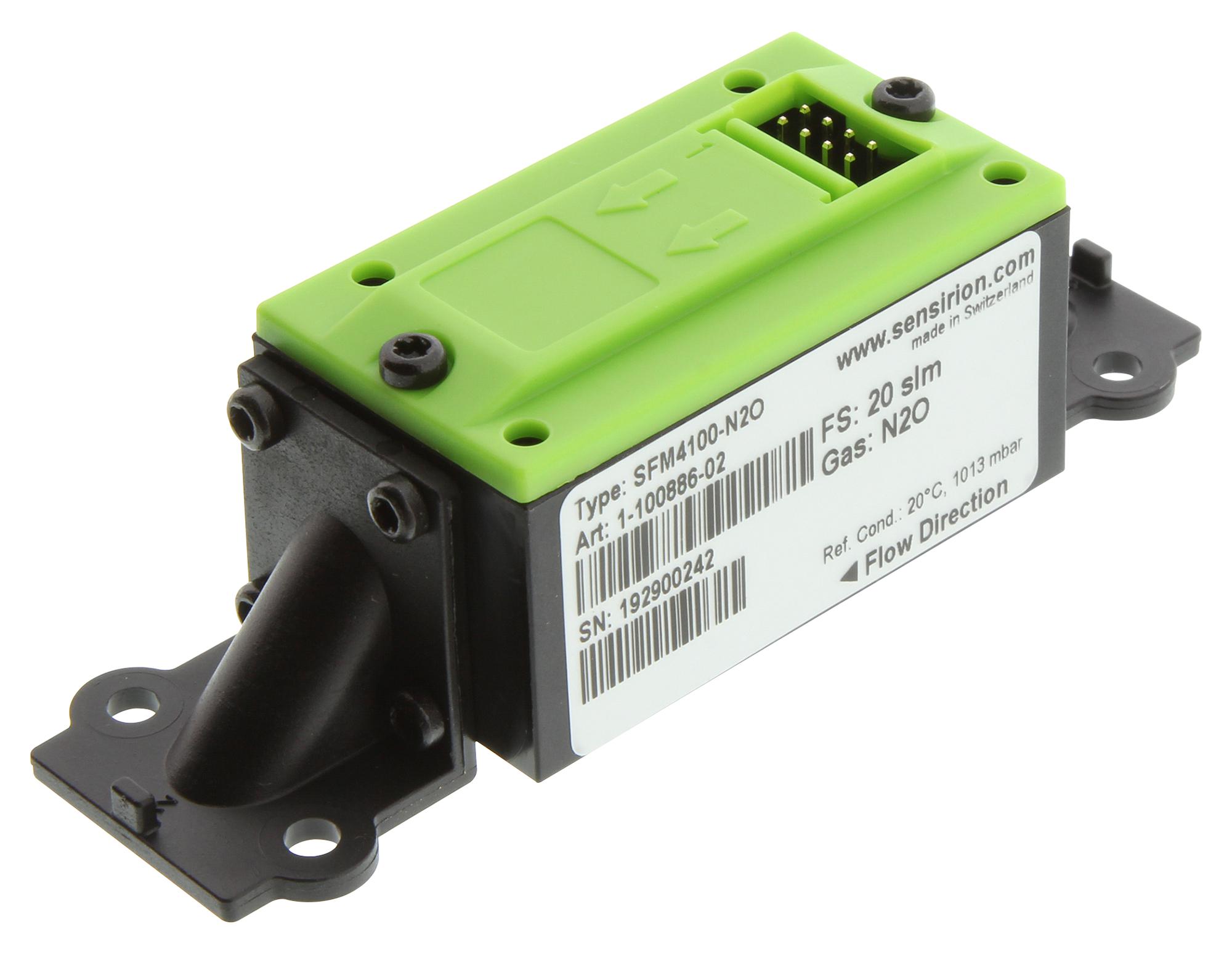

SENSIRION SFM4100N2ODOWNMOUNT Gas Flow Sensor
The SFM4100 gas flow meter series offers a versatile, high-accuracy digital mass flow measurement solution for gases such as air, oxygen, and carbon dioxide. Employing Sensirion’s CMOSens® technology, it features a thermal MEMS sensor that provides excellent stability, a large dynamic range up to 20 sccm, and digital I2C output for easy integration into OEM systems. Suitable for demanding applications like medical, analytical, leak testing, and process automation, this compact sensor supports operating pressures up to 10 barg with temperature compensation and robust, RoHS-compliant materials.
SENSIRION SFM4100N2ODOWNMOUNT Gas Flow Sensor Specifications:
- Measurement range: 0-20 slm2
- Calibration available for gases: Air, N2, O2, N2O, Ar, CO2
- Resolution: 12 bits preset
- Zero point accuracy: 0.03 sim
- Accuracy: 3% of full scale or 3% of reading, whichever is bigger
- Span repeatability: <0.25% of reading
- Offset shift due to temperature variation: < ±2 sim/°C
- Span shift due to temperature variation: < 0.1% of reading per °C
- Sensor response time: 4.6 ms at 12-bit resolution
- Power supply: 3.5-9 VDC, VLS: 2.9-5.5 V
- Current consumption: <12.5 mA
- Interface: Digital 2-wire I2C
- Operating temperature: -20°C to +80°C
- Materials: Stainless steel, Viton, gold, epoxy, nylon, Nitrile, coated aluminum
- Physical dimensions: See detailed mechanical drawings; weight < 60g
- Housing: RoHS compliant, Robust design
Buy the Sensirion SFM4100 – Reliable Gas Flow Measurement for Industrial Applications
Experience precise and reliable gas flow measurement with the Sensirion SFM4100 series. This cost-effective sensor features digital I2C communication, a wide dynamic range up to 20 slm2, and excellent long-term stability, making it ideal for medical, analytical, leak testing, and process automation applications. Its robust, RoHS-compliant design ensures durability under demanding conditions, supporting pressures up to 10 barg. Install easily onto OEM systems for real-time gas flow monitoring and efficient control, optimizing your operations with accuracy and dependability.
Order your Sensirion Series SFM4100 gas flow sensor today and enhance your industrial process automation with dependable, high-precision measurement.
Frequently Asked Questions
Where can I buy SENSIRION SFM4100N2ODOWNMOUNT?
You can click on the BUY or RFQ button to purchase SFM4100N2ODOWNMOUNT from an authorized SENSIRION distributor.
How do I troubleshoot issues or seek technical support for part SFM4100N2ODOWNMOUNT?
You can download the SFM4100N2ODOWNMOUNT datasheet or visit the SENSIRION website for support.
Who is the manufacturer of SFM4100N2ODOWNMOUNT?
SENSIRION
