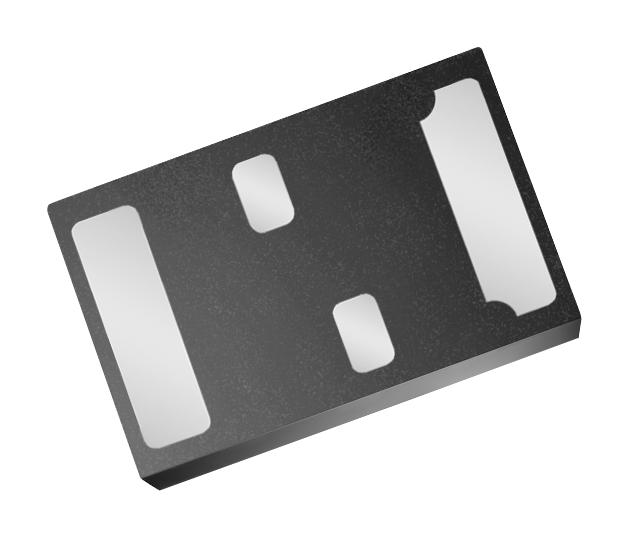

SITIME SIT1533ACH5DCC32768G MEMS Oscillator
The SiT1533 is an ultra-small, ultra-low power 32.768 kHz MEMS oscillator optimized for mobile and battery-powered devices. It features NanoDrive™ programmable output swing, ensuring minimal power consumption with a voltage swing as low as 200mV. Designed in a compact 2.0 x 1.2 mm SMD package, it is footprint- and pin-compatible with standard 2012 crystal oscillators, simplifying replacements. It offers excellent frequency stability of less than 20 ppm at room temperature and less than 100 ppm across -40°C to +85°C, making it ideal for timekeeping and RTC applications. Its MEMS technology ensures superior performance, reliability, and integration flexibility in various electronic devices.
SITIME SIT1533ACH5DCC32768G MEMS Oscillator Specifications:
- Frequency: 32.768 kHz
- Frequency Stability: <20 ppm at 25°C, <100 ppm over -40°C to +85°C
- Operating Voltage Range: 1.2V to 3.63V
- Power Consumption: Core current approximately 13 pA, output driver 0.065 μA at typical
- Package Size: 2.0 mm x 1.2 mm SMD (2012 footprint)
- Temperature Range: Commercial 0-70°C, Industrial -40 to +85°C
- Start-up Time: Approximately 450 ms from power-up
- Output: Oscillator output compatible with CMOS, with programmable voltage swing from 200 mV to 800 mV
- Built with MEMS First™ process and encapsulated via EpiSeal™ for durability and reliability
- Footprint compatible with quartz crystal in 2012 SMD package, no external load capacitors needed
- Features: NanoDrive™ programmable swing, enhanced power management, RoHS and REACH compliant
Buy the SiTime Series SiT1533 MEMS Oscillator: SIT1533ACH5DCC32768G
Purchase the SiTime SiT1533 MEMS oscillator online today to ensure precise and reliable 32.768 kHz timekeeping for your portable and battery-powered projects. Its ultra-low power design minimizes energy consumption, ideal for battery-operated devices like wearables, IoT sensors, and communication modules. With NanoDrive™ programmable output swing, you can customize the voltage levels for optimal integration with your circuitry. Simplify your design by replacing traditional quartz crystals with a compact, robust MEMS solution that guarantees high stability, excellent performance, and easy footprint compatibility. Order now for quick delivery!
Buy SiTime SiT1533ACH5DCC32768G now and experience unmatched reliability and low power consumption for mobile and RTC applications.
