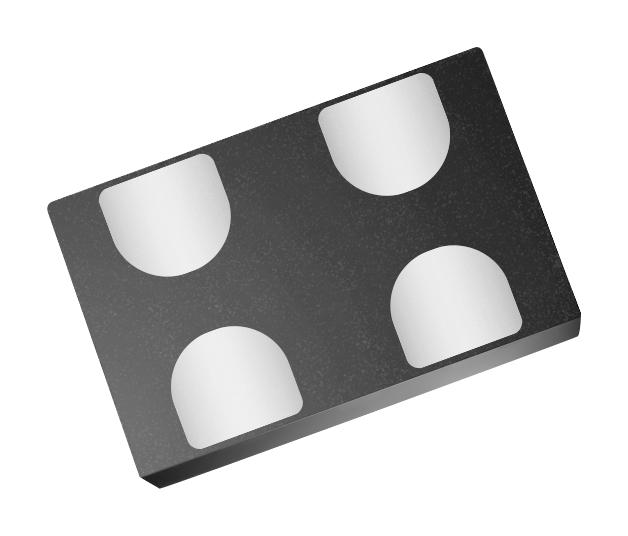

SITIME SIT8008BI1333E8000000G MEMS Oscillator

The SiT8008B is a low power programmable MEMS oscillator suitable for a wide range of high-speed digital and serial communication applications, supporting frequencies from 1 MHz to 110 MHz with ±20 ppm frequency stability. It offers excellent reliability due to vacuum-sealed MEMS resonators, immunity to electromagnetic interference, and robust shock and vibration resistance. With industry-standard small package sizes and multiple programmable options for temperature, voltage, and output drive strength, it is ideal for networking, telecommunication, and consumer electronics. The device supports various modes including output enable, standby, and no connect, with fast startup times and low power consumption, making it highly versatile for embedded systems requiring precise timing.

SiTime Series MEMS Oscillator: SIT8008B
View SIT8008BI1333E8000000GDatasheet [pdf]
Source
Part No:
Stock:
Inv Date:
Price:
Buy/RFQ:
No results.

SITIME SIT8008BI1333E8000000G MEMS Oscillator Specifications:

  • Frequency Range: 1-110 MHz
  • Frequency Stability: ±20 ppm (initial at 25°C, 10-year aging)
  • Operating Temperature Range: -40°C to 85°C
  • Supply Voltage: 1.8V to 3.63V
  • Current Consumption: 35-45 mA at 20 MHz, Vdd = 2.8V to 3.3V
  • Output Mode: LVCMOS/HCMOS compatible
  • Rise/Fall Time: Typically 2-3 ns depending on voltage and load
  • Package Sizes: 2.0x1.6mm, 2.5x2.0mm, 3.2x2.5mm, 5.0x3.2mm, 7.0x5.0mm
  • Electrical Characteristics: Includes output voltage levels, load capacity up to 60 pF, power supply rejection, and jitter specifications
  • Features: RoHS and REACH compliant, Pb-free, Halogen and Antimony-free
  • Modes: Output Enable, Standby, No Connect with programmable control
  • Startup Time: < 5 ms
  • Vibration & Shock Resistance: Up to 50,000 g shock, robust vibration tolerance
  • Reliability: Long term aging of 10 years, vacuum sealed MEMS resonators

Buy the SiTime Series MEMS Oscillator: SIT8008B

Purchase the SiTime Series MEMS Oscillator SIT8008B online now to enhance your electronic designs with high stability and reliability. This low power device offers frequencies from 1 to 110 MHz, ideal for networking, telecommunication, and consumer electronics. It features advanced vacuum sealed MEMS resonators for long-term aging performance, immunity to electromagnetic interference, and robust shock and vibration resistance. With multiple package options, programmable temperature and voltage ranges, and fast startup times, it provides flexibility and precision for your critical timing needs. Order online today for fast delivery and support.

Order your SiTime Series MEMS Oscillator SIT8008B today and give your projects the dependable, high-precision timing solution they deserve.

Frequently Asked Questions

Where can I buy SITIME SIT8008BI1333E8000000G?

You can click on the BUY or RFQ button to purchase SIT8008BI1333E8000000G from an authorized SITIME distributor.

How do I troubleshoot issues or seek technical support for part SIT8008BI1333E8000000G?

You can download the SIT8008BI1333E8000000G datasheet or visit the SITIME website for support.

Who is the manufacturer of SIT8008BI1333E8000000G?

SITIME
