SITIME SIT1602AI2318E33333330G MEMS Oscillator

The SiT1602B is a low power, standard frequency MEMS oscillator offering high frequency stability up to +20 ppm, operating across -40°C to 85°C. It features a compact 2.0 x 1.6 mm package, supports 52 standard frequencies between 3.57 MHz and 77.76 MHz, and is suitable for applications like DSC, DVR, IP cameras, and tablets requiring reliable clock sources. Its inherent advantages include excellent long-term aging, immunity to electromagnetic interference, vibration, and shock resistance, with low power consumption of around 3.5 mA at 1.8V. It supports output modes OE, ST, or NC, with fast startup and configurable drive strength for optimized system performance.

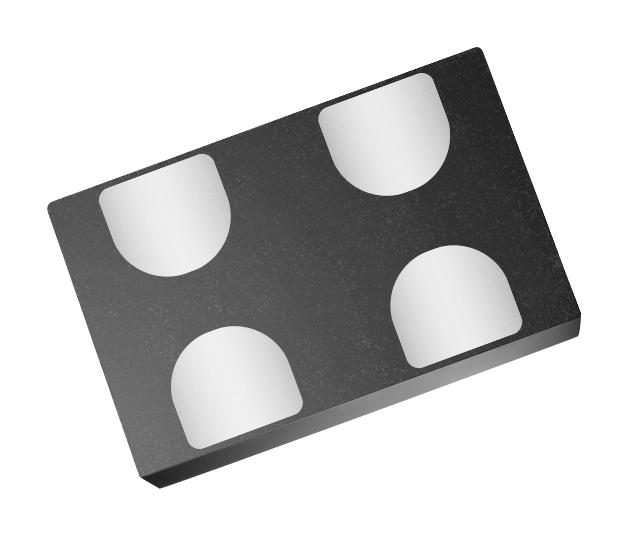

SiTime Series SiT1602B MEMS Oscillator: SIT1602AI2318E33333330G
View SIT1602AI2318E33333330GDatasheet [pdf]
Source
Part No:
Stock:
Inv Date:
Price:
Buy/RFQ:
No results.

SITIME SIT1602AI2318E33333330G MEMS Oscillator Specifications:

  • Frequency Range: 3.57 MHz - 77.76 MHz, 52 standard frequencies listed in datasheet
  • Frequency Stability: ±20 ppm at 25°C, aging, temperature variations included
  • Operating Temperature: -40°C to 85°C (Industrial grade)
  • Supply Voltage: 1.62 V to 3.63 V, support varies with configuration, typical 1.8V support available
  • Current Consumption: 3.5 mA typical at 1.8V, standby current approximately 26-43 μA
  • Package Dimensions: 2.0 x 1.6 mm x 0.75 mm, with recommended land pattern provided
  • Output Mode: LVCMOS/HCMOS compatible, support OE, ST, or NC modes
  • Rise/Fall Time: 1.2 to 2 ns depending on supply voltage
  • Jitter RMS Period: 18-25 ps, peak-to-peak 12-30 ps, over specific frequencies
  • Power-On and Resume Timing: Startup time of 5 ms, enable/disable within 138 ns
  • Electromagnetic Susceptibility: Up to 54x more immune than quartz oscillators
  • Mechanical Shock Resistance: Capable of withstanding at least 50,000 g shocks
  • Vibration Resistance: Up to 3000x better than quartz, robust against vibrations

Buy the SiTime Series SiT1602B MEMS Oscillator: SIT1602AI2318E33333330G

Order the SiTime SiT1602B MEMS oscillator online today and experience exceptional reliability, low power consumption, and stable high-frequency signals. Perfect for industrial, communication, and consumer applications, this compact device offers outstanding aging performance, electromagnetic immunity, and shock resistance. Easy to integrate with configurable modes and drive strength for optimized system design. Enjoy fast startup times and support for 52 standard frequencies from 3.57 MHz to 77.76 MHz. Purchase now for enhanced system reliability and simplified inventory management with rapid delivery options.

Get SiTime SiT1602B today—built for precision and long-lasting durability in demanding industrial environments.

Frequently Asked Questions

Where can I buy SITIME SIT1602AI2318E33333330G?

You can click on the BUY or RFQ button to purchase SIT1602AI2318E33333330G from an authorized SITIME distributor.

How do I troubleshoot issues or seek technical support for part SIT1602AI2318E33333330G?

You can download the SIT1602AI2318E33333330G datasheet or visit the SITIME website for support.

Who is the manufacturer of SIT1602AI2318E33333330G?

SITIME
