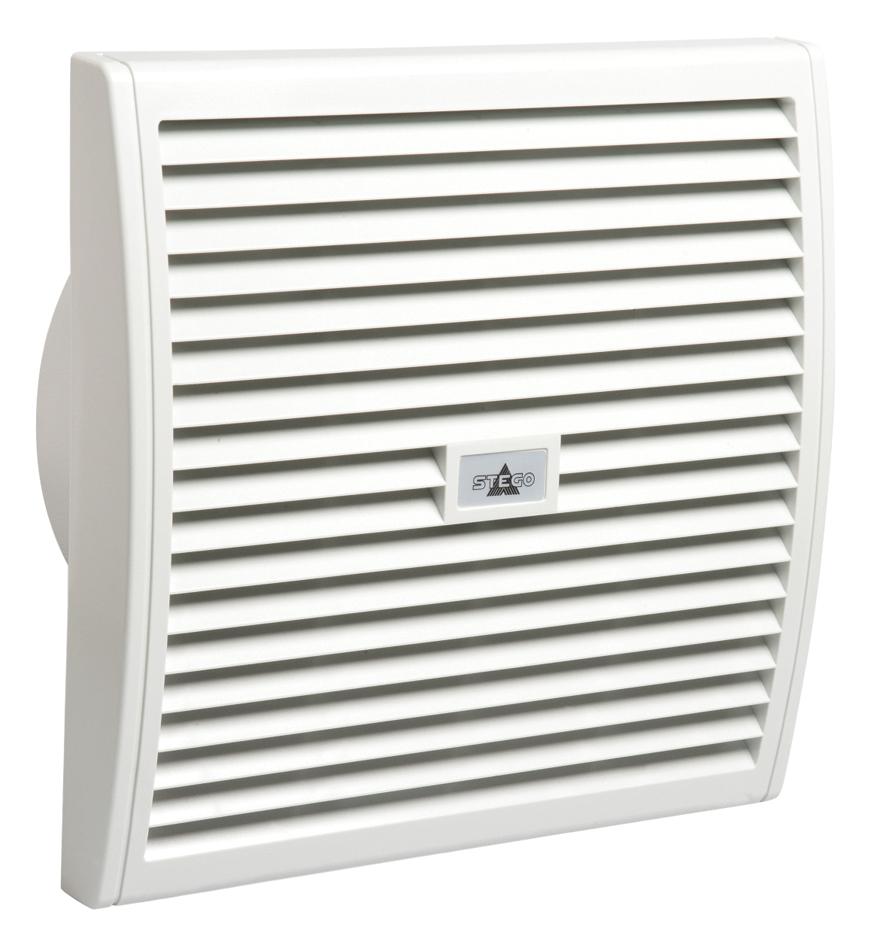

STEGO 01884000 Filter Fan Series
The Filter Fan Plus series ensures optimal climate control inside enclosures containing electronic components by channeling cool, filtered outside air in and expelling heated internal air. Designed for indoor use, this series employs a new air-flap outlet technology, offering high airflow rates to prevent overheating and hot spots. Available in two systems—FPI and FPO—each with specific configurations for intake and exhaust, the fans feature UL94 V-0 plastic parts, synthetic fibre filters resistant to 100°C, and ball-bearing axial fans with metal rotors, supporting reliable operation and easy installation.
STEGO 01884000 Filter Fan Series Specifications:
- Enclosure Cut-out: 291x231mm
- Fan Type: Axial, ball bearing
- Rotor Material: Metal
- Connection: 3 pole damper for 25 mm, clamping torque 0.8 Nm max
- Plastic components: UL94 V-0, UV resistant
- Filter Material: Synthetic fibre, temperature resistant to 100°C, self-extinguishing, moisture resistant to 100% RH, reusable
- Filter G3 acc. to DIN EN779, arrestance 84%
- Operating Temperature: -25°C to +55°C at 50Hz, -25°C to +35°C at 60Hz
- Storage Temperature: -40°C to +70°C
- Humidity: Max 75% RH (non-condensing)
- Protection Class: IP54
- Environmental Rating: UL TYPE 12 / NEMA 2
- Approvals: VDE, UL, EAC
- Power Consumption: 413mA - 660mA depending on model
- Airflow (FPI Systems): 320-433 m³/h
- Airflow (FPO Systems): 703-727 m³/h
- Weight: approx. 31-32 kg
- Dimensions: 160 mm depth, mounting frame compatible with various sizes
Buy the Cool Series Filter Fan Plus: 01884000
Secure your enclosure cooling solution with the high-performance Filter Fan Plus series. Featuring innovative air-flap outlet technology, UL-certified plastic parts, and moisture-resistant synthetic filters, these fans are designed for indoor environment cooling. Available in FPI and FPO systems, they provide high airflow rates up to 727 m³/h, ensuring electronic components are protected from overheating. Easy to install, with robust construction, choose the Filter Fan Plus to optimize enclosure climate control quickly and reliably online today.
Buy Filter Fan Plus with high airflow and reliable performance from the Cool Series now and experience unmatched reliability and efficient enclosure cooling.
