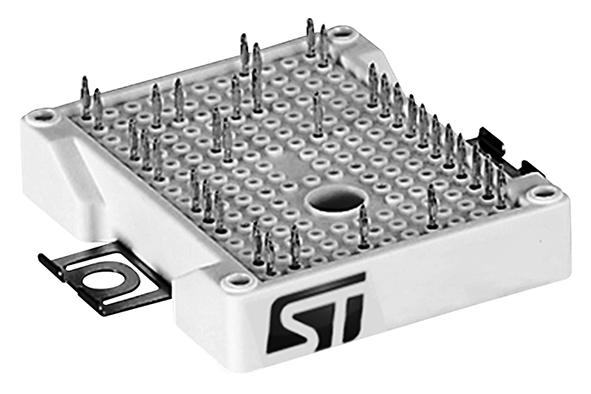

STMICROELECTRONICS A2P75S12M3 Power Module
This six-pack power module features trench gate field-stop IGBTs and fast soft diodes, rated for 1200 V and 75 A, with integrated NTC for temperature sensing. Designed for high efficiency in inverter and motor drive applications, it combines advanced semiconductor technology with robust packaging for industrial use. The ACEPACK™ 2 module boasts sixpack topology, copper bus connections, and solder contact pins, ensuring reliable performance and thermal management. Suitable for high-frequency converters up to 20 kHz, it enhances energy efficiency and system durability in demanding industrial environments.
STMICROELECTRONICS A2P75S12M3 Power Module Specifications:
- Voltage Rating: 1200 V
- Continuous Collector Current: 75 A
- Pulsed Collector Current: 150 A
- Gate-Emitter Voltage: +20 V
- Total Power Dissipation: 454.5 W
- Maximum Junction Temperature: 175 °C
- Operating Temperature Range: -40 to 150 °C
- Package: ACEPACK™ 2 sixpack solder pins
- Isolation Voltage: 2500 V (AC, 60 s)
- Module Lead Resistance: 3.6 mΩ
- Stray Inductance: 33.5 nH
- Storage Temperature: -40 to 125 °C
- Screw Mounting Torque: 40–80 Nm
Buy the STMicroelectronics A2P75S12M3 – Reliable Power Module for Industrial Applications
Purchase the STMicroelectronics A2P75S12M3 power module online today and equip your industrial inverter or motor drive system with high-performance IGBTs and diodes. Featuring trench gate technology and integrated NTC, this module ensures excellent thermal management and energy efficiency up to 20 kHz. Its robust ACEPACK™ 2 package provides reliable electrical connections and environmental durability. Ideal for demanding industrial environments, it offers maximum system reliability, low switching losses, and optimal performance to meet your project needs efficiently.
Order your STMicroelectronics A2P75S12M3 sixpack power module today and enhance your inverter and motor drive systems with proven efficiency and robustness.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS A2P75S12M3?
You can click on the BUY or RFQ button to purchase A2P75S12M3 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part A2P75S12M3?
You can download the A2P75S12M3 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of A2P75S12M3?
STMICROELECTRONICS
