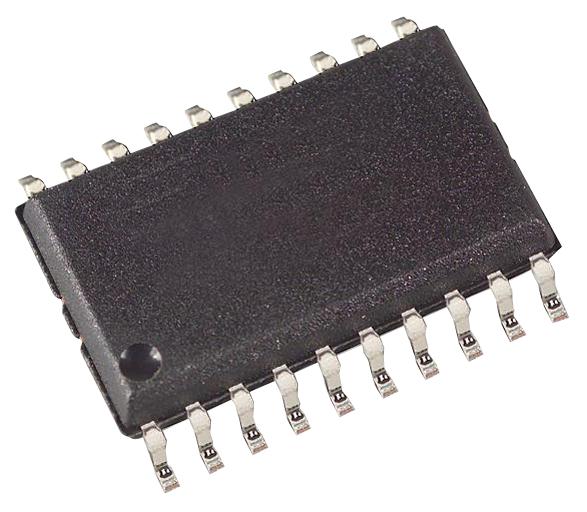

STMICROELECTRONICS TDA7418 Audio Processor
The TDA7418 is a high-performance audio processor designed for car audio systems, featuring fully integrated 3-band filters to optimize sound quality. It provides flexible input options including pseudo differential and single-ended stereo inputs, with adjustable gain from 0 to 15dB in 1dB steps. The device includes programmable frequency response, soft mute functionality, and independent controls for bass, middle, and treble with variable Q factors and attenuation. Its sophisticated digital processing ensures clear, customizable audio with enhanced loudness, low, mid, and high-frequency boosts, suitable for automotive sound systems and electronics applications.
STMICROELECTRONICS TDA7418 Audio Processor Specifications:
- Input types: PD/SE4 pseudo differential stereo, SE1, SE2, SE3 stereo inputs
- Input gain: 0 to 15dB adjustable in 1dB steps
- Frequency response: programmable center frequencies (400Hz, 800Hz, 2400Hz, 60Hz, 80Hz, 100Hz, 200Hz, 500Hz, 1kHz, 1.5kHz, 2.5kHz, 10kHz, 12.5kHz, 15kHz, 17.5kHz)
- Boost levels: up to 15dB with 1dB steps for tone controls
- Volume control: +15dB to -79dB in 1dB steps
- Bass filter: programmable center frequency, Q factor, attenuation, and DC gain
- Mid filter: programmable center frequency, Q factor, attenuation
- Treble filter: programmable center frequency, attenuation
- Speaker attenuation: 4 independent soft-step controls, +15dB to -79dB
- Subwoofer output: single-ended mono, soft level control
- Mute functions: direct mute, SoftMute with programmable mute-times (0.48ms, 0.96ms, 123ms)
- Temperature range: -40°C to +85°C
- Package Type: SOIC-20
Buy the Buy ST Microelectronics TDA7418 Part Number TDA7418 Online
Purchase the ST Microelectronics high-performance audio processor TDA7418 online now. This versatile device offers extensive tone control, programmable filters, and digital processing for superior sound quality in automotive and home audio systems. With multiple input options, adjustable gain, and programmable frequency responses, the TDA7418 is ideal for custom audio projects. Easy to integrate, it ensures enhanced audio clarity and adjustable settings to meet your sound performance needs. Order today for reliable, advanced audio solution delivery.
Get ST Microelectronics TDA7418 today—designed for high-quality audio processing with versatile tone control and digital programmability.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS TDA7418?
You can click on the BUY or RFQ button to purchase TDA7418 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part TDA7418?
You can download the TDA7418 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of TDA7418?
STMICROELECTRONICS
