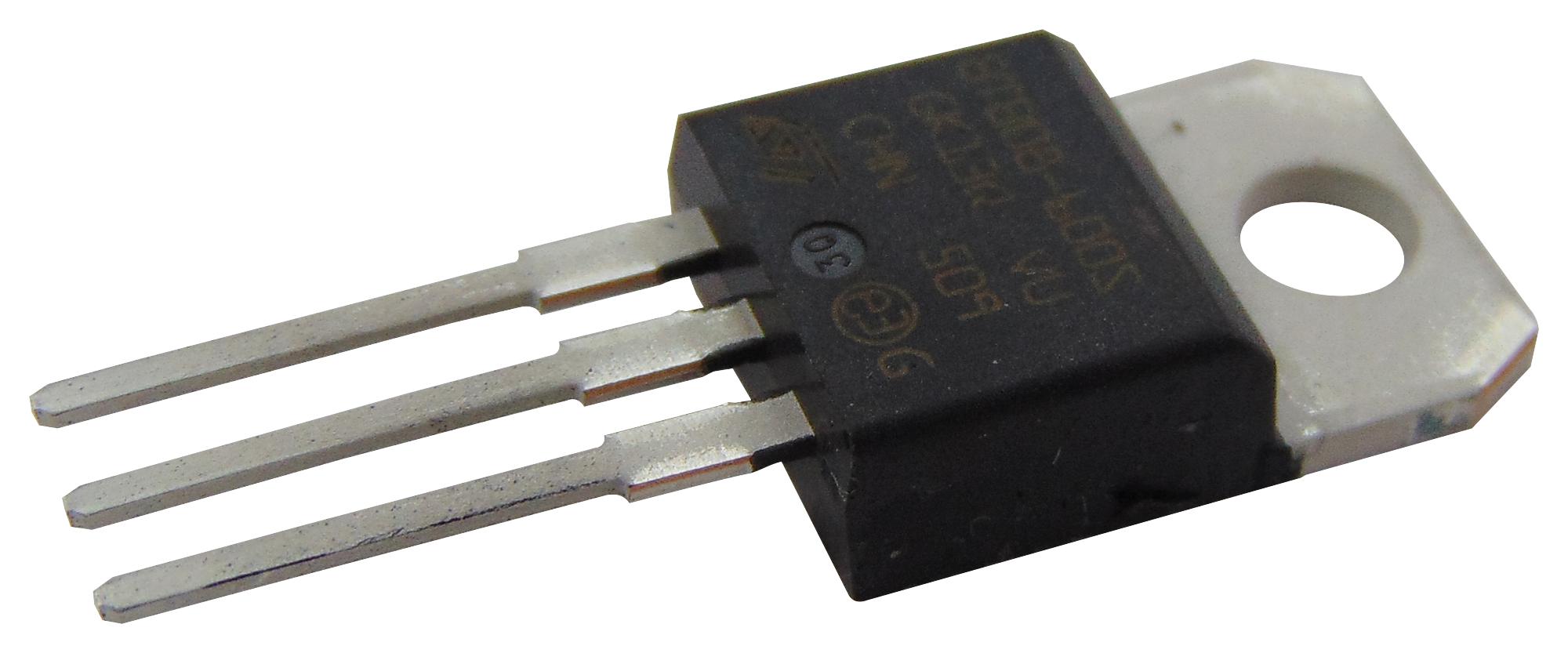

STMICROELECTRONICS BTB08600SRG High Power Triac
These high-performance triacs are designed for AC switching applications, including static relays, dimmers, and motor control, featuring snubberless and logic level options for inductive loads, with ratings up to 8 A rms and voltage capacities of 600 V to 800 V. Available in TO-220, DPAK, and IPAK packages, they ensure high reliability, UL voltage insulation, and compatibility with low-power microcontroller drivers. Their robust construction and thermal management capabilities make them suitable for industrial automation and electronic control systems.
STMICROELECTRONICS BTB08600SRG High Power Triac Specifications:
- On-state rms current: 8 A
- Repetitive peak off-state voltage: 600 V to 800 V
- Triggering gate current: 5 to 50 mA
- Non repetitive surge peak: 80 A
- Critical rate of rise of on-state current: 50 A/μs
- Gate peak current: 4 A at Tj=125°C
- Storage junction temperature range: -40°C to +150°C
- Operating junction temperature range: -40°C to +125°C
- Package options: TO-220AB, DPAK, IPAK
- UL approved voltage insulated tab rated at 2500 Vrms
- Dimensions vary per package, approximately 15.9 mm in length for TO-220AB
- Thermal resistance: Junction to case approximately 1.6°C/W for TO-220AB
Buy the STMicroelectronics Series Snubberless Triacs: BTB08600SRG
Purchase the STMicroelectronics BTB08600SRG triac online today to enhance your AC switching projects, dimmers, or motor control systems. These triacs are engineered for high performance, featuring snubberless and logic level capabilities, reliable voltage insulation, and diverse package options including TO-220, DPAK, and IPAK. Their robust construction ensures durability and efficient thermal management, making them ideal for industrial automation, home appliances, and electronic control solutions. Order now for rapid delivery and upgrade your electronic devices with trusted, high-quality components.
Buy STMicroelectronics BTB08600SRG triacs now and experience unmatched reliability and performance in AC switching and motor control applications.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS BTB08600SRG?
You can click on the BUY or RFQ button to purchase BTB08600SRG from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part BTB08600SRG?
You can download the BTB08600SRG datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of BTB08600SRG?
STMICROELECTRONICS
