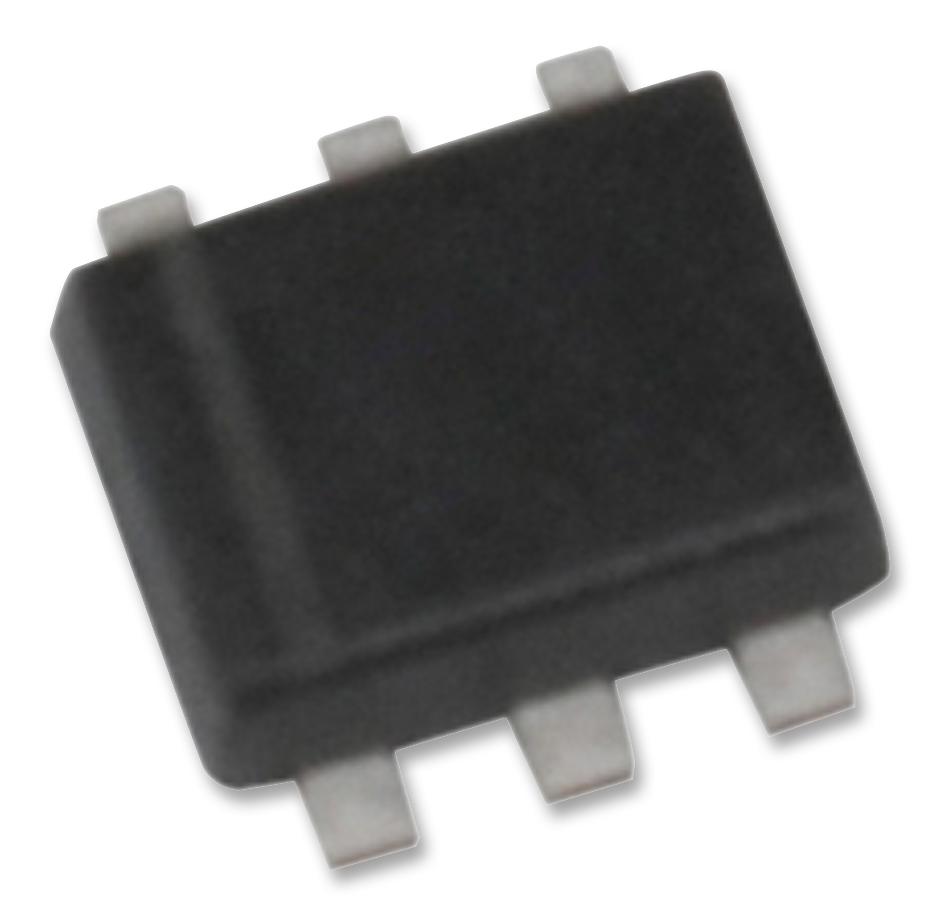

STMICROELECTRONICS ESDA254BP6 ESD Protection Array
The ESDA25-4BP6 is a monolithic array designed for ESD transient protection with up to 4 lines. It features high ESD protection levels suitable for high-density boards and sensitive equipment such as computers and communication systems. The device offers breakdown voltage of at least 25 V, low leakage current, and compact size, making it ideal for saving space on printed circuit boards. It complies with IEC 61000-4-2 level 4 standards, providing reliable ESD protection for various electronic applications.
STMICROELECTRONICS ESDA254BP6 ESD Protection Array Specifications:
- Breakdown Voltage: 25 V min.
- Peak Pulse Power: 50 W
- Clamping Voltage: 24 V at Ipp of 1 A
- Leakage Current: < 1 nA at Voff
- Maximum Storage Temperature: -55°C to +150°C
- Operating Temperature Range: -40°C to +150°C
- Package Type: SOT-666
- Dimensions: Length varies with model, typical ins. thickness 0.030 inches, diameter 0.070 inches
- Stand-off Voltage: 25 V
- Pulse Discharge: 8/20 ps waveform
- Compliance Standards: IEC 61000-4-2 level 4, MIL STD 883E-Method 3015-7
Buy the Buy STMicroelectronics ESD Protection Array Part Number ESDA25-4BP6 Online
Purchase the STMicroelectronics ESDA25-4BP6 ESD protection array online to ensure reliable transient suppression for sensitive electronic equipment. Its compact size allows for space-saving applications, while its high breakdown voltage of at least 25V provides excellent protection against ESD events. Suitable for high-density circuits, the device features low leakage current and meets IEC 61000-4-2 level 4 standards. Ideal for protecting computers, communication systems, and video equipment, it offers long-lasting durability and high integration for advanced electronic designs.
Get STMicroelectronics ESDA25-4BP6 today—high protection, space-saving design for sensitive electronics and high-density boards.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS ESDA254BP6?
You can click on the BUY or RFQ button to purchase ESDA254BP6 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part ESDA254BP6?
You can download the ESDA254BP6 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of ESDA254BP6?
STMICROELECTRONICS
