STMICROELECTRONICS EVALSTPM34 Energy Metering Board

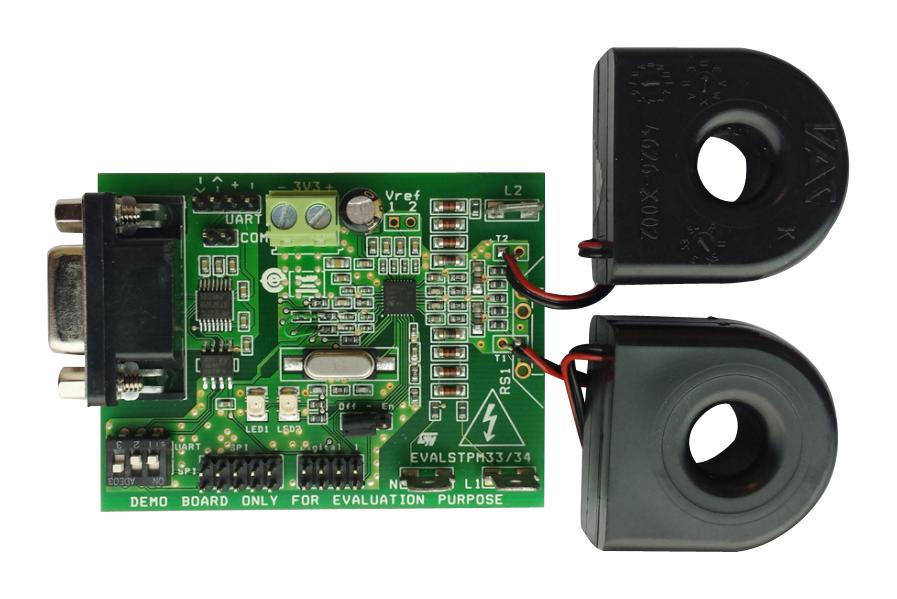

The STPM34 evaluation board is a class 0.2 dual-phase energy meter with two current transformers designed for power line systems with a voltage range of 140 to 300 V. It features high accuracy, programmable LEDs for active and reactive power display, and offers interface options including isolated RS232, UART, and SPI/UART for microcontroller integration. Suitable for power monitoring, the board operates from a 3.3 V power supply, either external or via an isolated USB interface, and supports evaluation and development in energy measurement applications.
STMICROELECTRONICS EVALSTPM34 Energy Metering Board Specifications:
- Accuracy: 0.2% for dual or split-phase measurement
- Voltage Range: Vnom = 140 to 300 V
- Current: Inom/Imax = 5/100 A
- Frequency: 50/60 Hz ±10%
- Operating Temperature: -40°C to +85°C
- Power Supply: 3.3 V external or via USB isolated interface
- Communication: RS232, UART, SPI interface options
- Programmable LEDs: 2 for active/reactive power output
- Compliance: IEC61000, RoHS
- Brand: STMicroelectronics
- Product Type: Energy metering evaluation board
Buy the Buy STMicroelectronics Energy Metering Part Number EVALSTPM34 Online
Purchase the STMicroelectronics Energy Metering Board today for precise dual-phase power measurement and flexible interface options. Its advanced features include high accuracy of 0.2%, compatibility with power systems from 140 to 300 V, and support for microcontroller applications through UART, SPI, and RS232 interfaces. The board is ideal for energy monitoring, research, and development projects, offering reliable performance at an affordable price. Enhance your energy systems with this professional-grade evaluation tool, available online now.
Get STMicroelectronics EVALSTPM34 today—designed for accurate energy measurement and versatile microcontroller integration.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS EVALSTPM34?
You can click on the BUY or RFQ button to purchase EVALSTPM34 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part EVALSTPM34?
You can download the EVALSTPM34 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of EVALSTPM34?
STMICROELECTRONICS
