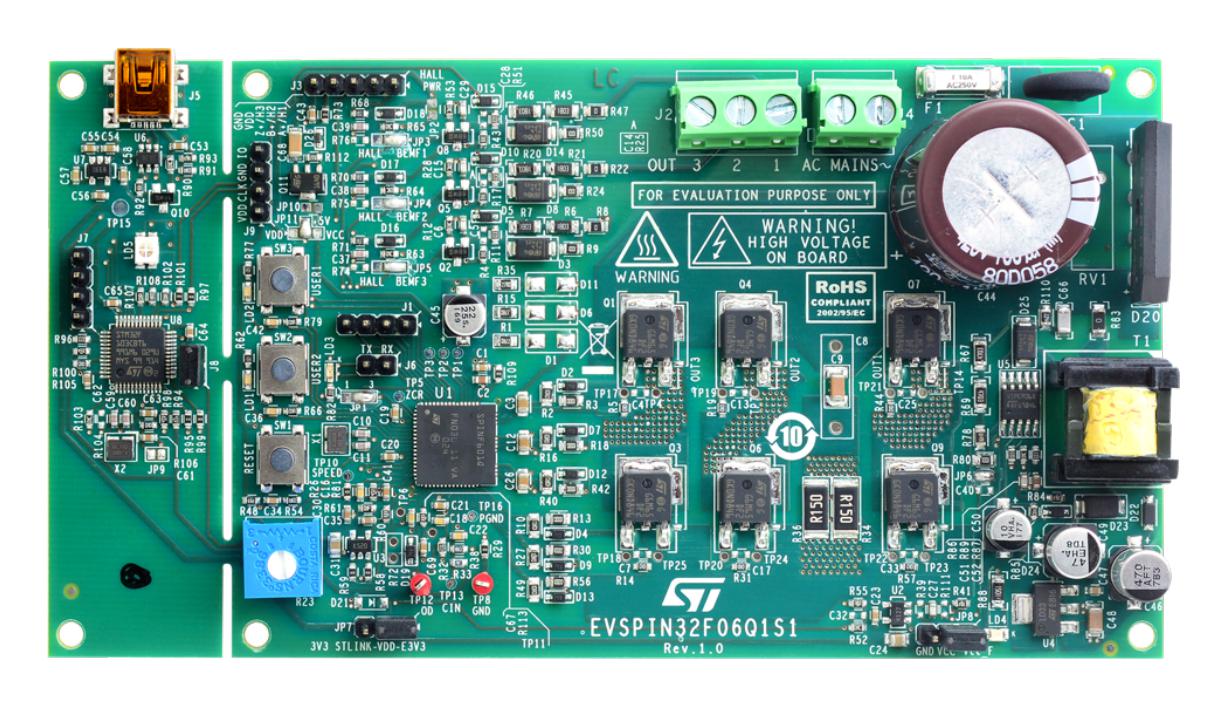

STMICROELECTRONICS EVSPIN32F06Q1S1 3-phase inverter
The EVSPIN32F06Q1S1 is a comprehensive three-phase inverter evaluation board designed for motor control applications. It features the STSPIN32F0601 controller with embedded STM32 Cortex®-M0 MCU and a 600 V gate driver. Compatible with various IGBTs and MOSFETs in DPAK or Power Flat HV packages, it supports both sensored and sensorless FOC and 6-step control algorithms. The board handles input voltages from 35 VAC to 280 VAC, includes overcurrent protection, Bus voltage sensing, and is suitable for industrial drives, pumps, fans, HVAC compressors, and power tools, offering a robust solution for precise motor control and automation systems.
STMICROELECTRONICS EVSPIN32F06Q1S1 3-phase inverter Specifications:
- Input Voltage Range: 35 VAC (50 VDC) to 280 VAC (400 VDC)
- Controller: STSPIN32F0601 with Cortex-M0 MCU
- Power Stage: STGD6M65DF2 IGBTs, Vvsryces = 650 V
- Overcurrent Threshold: 5.5 A peak
- Gate Driver: 600 V, compatible with DPAK and PowerFlat HV packages
- Control Algorithms: FOC and 6-step, sensored or sensorless operation
- Current Sensing: Single-shunt topology
- Supplies: +15 V and 3.3 V embedded power stages
- Protection Features: Smart shutdown, overcurrent protection
- Additional Inputs: Digital Hall sensors, encoder input, bus voltage sensing
- Embedded Debugger: ST-LINK/V2-1 for programming and debugging
- Operating Environment: Suitable for industrial and home automation applications
- RoHS Compliant
Buy the Buy STMicroelectronics EVSPIN32F06Q1S1 Part Number EVSPIN32F06Q1S1 Online
Experience seamless motor control with the EVSPIN32F06Q1S1 evaluation board, equipped with a robust STM32 Cortex-M0 MCU, high-voltage gate driver, and flexible control options. Ideal for industrial automation, HVAC systems, power tools, and home appliances, this comprehensive inverter offers advanced protection features, wide voltage compatibility, and support for both sensored and sensorless algorithms. Easy to program via ST-LINK debugger, it ensures reliable performance for demanding applications. Purchase online today to accelerate your development with this versatile, high-quality inverter solution.
Get STMicroelectronics EVSPIN32F06Q1S1 today—designed for precise motor control and reliable high-voltage operation.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS EVSPIN32F06Q1S1?
You can click on the BUY or RFQ button to purchase EVSPIN32F06Q1S1 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part EVSPIN32F06Q1S1?
You can download the EVSPIN32F06Q1S1 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of EVSPIN32F06Q1S1?
STMICROELECTRONICS
