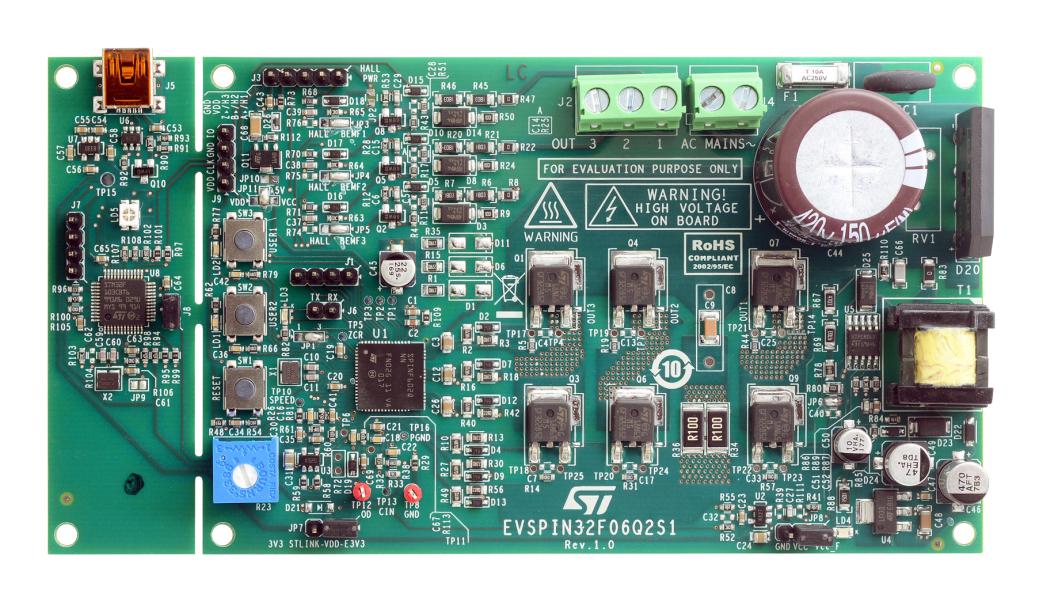

STMICROELECTRONICS EVSPIN32F06Q2S1 Motor Control Inverter
The evaluation board features a 3-phase inverter driven by an STSPIN32F0602 controller, suitable for motor control applications such as industrial drives, pumps, and fans. It includes a power stage with STD18N65M5 MOSFETs, dual footprint options, and a single-shunt sensing topology for sensored or sensorless control algorithms. Designed for input voltages from 35 VAC to 280 VAC, it integrates a power supply stage, embedded debugger, and is RoHS compliant, making it ideal for demonstration and development of PMSM and BLDC motor drives with flexible control options.
STMICROELECTRONICS EVSPIN32F06Q2S1 Motor Control Inverter Specifications:
- Input Voltage: 35 VAC (50 VDC) to 280 VAC (400 VDC)
- Power Stage: STD18N65M5 MOSFET, Vos @ Timax = 710 V, Max Rds(on) = 0.2200 Ω
- Dual footprint: DPAK and PowerFlat 8x8 HV
- Current Sensing: Single-shunt topology, Overcurrent threshold: 8.5 Apeak
- Control: Supports sensored or sensorless FOC and 6-step algorithms
- Power Supplies: +15 V and +3.3 V generated via flyback VIPER stage
- Microcontroller: Embedded STM32 Cortex-M0
- Input Voltage Range: 35 VAC to 280 VAC
- Protection Features: Smart shutdown overcurrent
- Connectivity: Embedded ST-LINK/V2-1 debugger, SWD, UART interfaces
- RoHS Compliant and suitable for industrial and home appliance applications
Buy the Buy STMicroelectronics EVSPIN32F06Q2S1 Part Number EVSPIN32F06Q2S1 Online
Purchase the STMicroelectronics EVSPIN32F06Q2S1 evaluation board online today to accelerate your motor control development. This versatile inverter is ideal for industrial automation, home appliances, and HVAC systems. Featuring a 3-phase inverter design, support for sensored and sensorless control, and a broad input voltage range, it provides a comprehensive platform for implementing efficient PMSM and BLDC motors. Easy to connect, debug, and integrate, ensuring high performance and reliability for your engineering projects.
Order your STMicroelectronics EVSPIN32F06Q2S1 motor control inverter today and enhance your projects with reliable, flexible inverter technology.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS EVSPIN32F06Q2S1?
You can click on the BUY or RFQ button to purchase EVSPIN32F06Q2S1 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part EVSPIN32F06Q2S1?
You can download the EVSPIN32F06Q2S1 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of EVSPIN32F06Q2S1?
STMICROELECTRONICS
