STMICROELECTRONICS PNUCLEO6180A1 Proximity Sensor Module

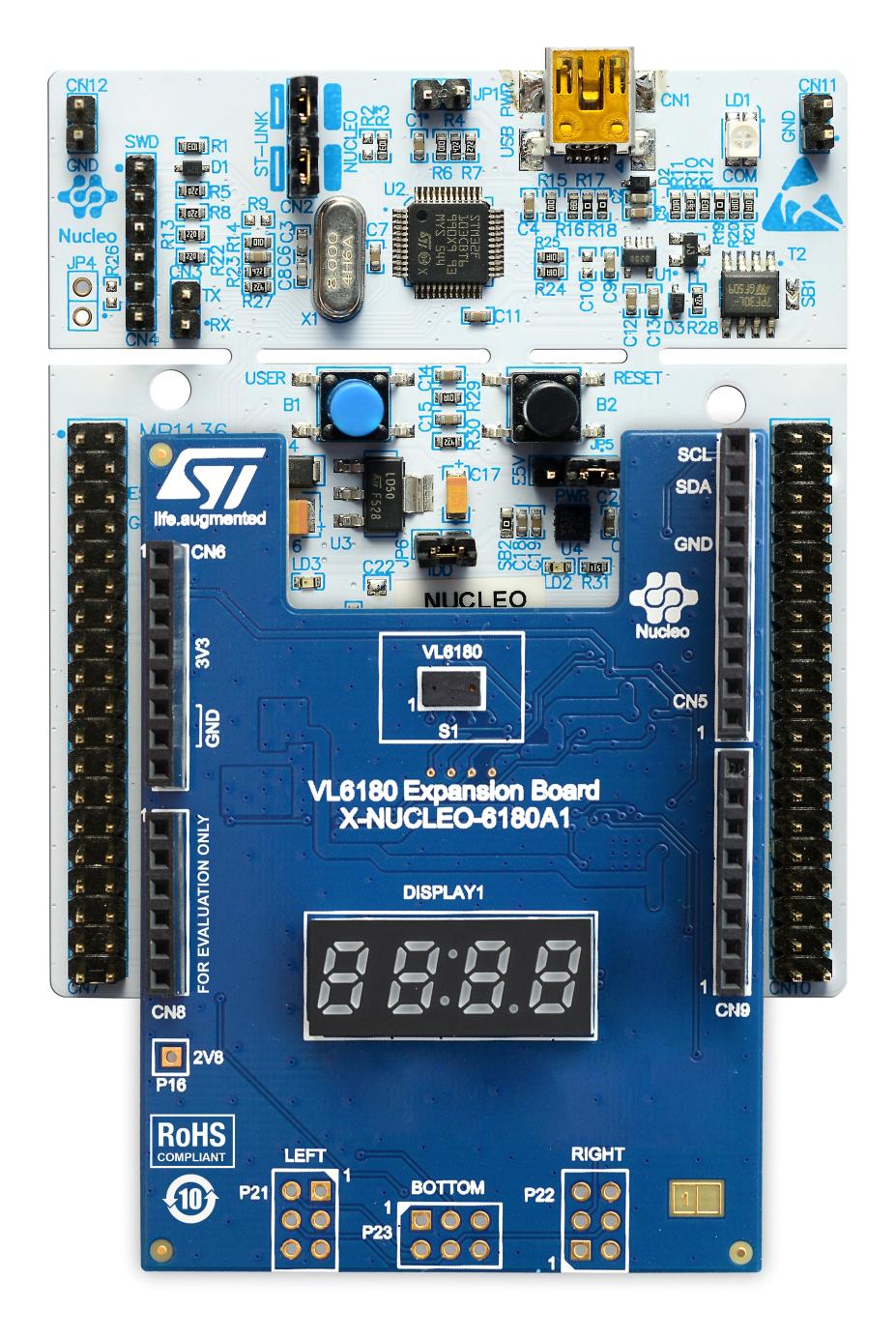

The P-NUCLEO-6180A1 evaluation kit combines the VL6180 proximity Time-of-Flight sensor with the STM32F401RE microcontroller, enabling precise distance measurement independent of target surface reflectance. It includes a NUCLEO-F401RE microcontroller board, an expansion board with a 4-digit display, and supports up to three additional breakout boards for multiple sensors. This compact, versatile package is ideal for developing proximity sensing applications, offering easy integration, robust software support, and compliance with laser safety standards for safe operation.
STMICROELECTRONICS PNUCLEO6180A1 Proximity Sensor Module Specifications:
- Sensor: VL6180 Time-of-Flight proximity sensor
- Microcontroller: STM32F401RE, ARM Cortex-M4, 84 MHz
- Display: 4-digit numeric display for distance in mm
- Operating Voltage: 2.8 V regulator supplied
- Connectivity: Arduino Uno R3 compatible connectors, I2C interface
- Expansion support: Up to 3 VL6180 breakout boards
- Laser Class: Class 1 laser safety compliant
- RoHS: Compliant
- Power Management: Power supply via expansion board and microcontroller
- Software: Full system software provided, downloadable from ST website
- Environmental: ECOPACK packages, environmentally compliant
- Physical: Compact design, supports multiple sensors in a single system
Buy the Buy STMicroelectronics P-NUCLEO-6180A1 Part Number PNUCLEO6180A1 Online
Purchase the STMicroelectronics P-NUCLEO-6180A1 evaluation pack online to quickly integrate precise proximity sensing into your automation or robotics projects. This comprehensive kit includes a high-accuracy VL6180 sensor, a versatile STM32F401RE microcontroller, and expandable breakout boards, facilitating rapid development and testing. Its robust software support and compliance with laser safety standards ensure safe, reliable operation. Whether developing prototypes or deploying in embedded systems, this kit offers excellent flexibility and performance for advanced proximity detection solutions.
Buy STMicroelectronics P-NUCLEO-6180A1 now and enhance your proximity sensing applications with advanced FlightSense technology and flexible prototyping capabilities.
