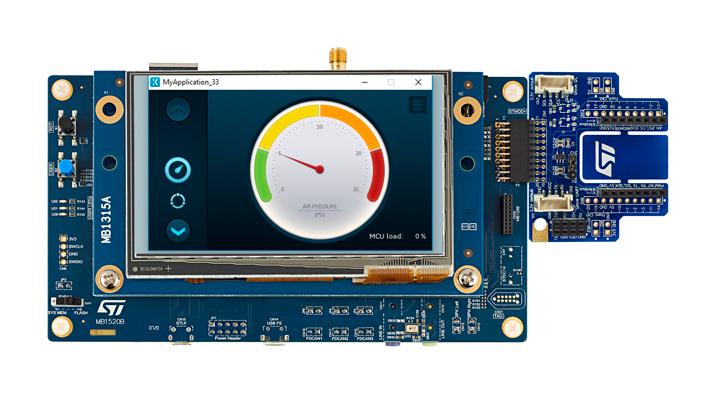

STMICROELECTRONICS STM32H735GDK Embedded Development Kit
The STM32H735G-DK Discovery kit is a comprehensive development platform centered around the STM32H735IGK6U microcontroller with 1 Mbyte Flash and 564 Kbytes SRAM. It features a 4.3-inch color TFT LCD with capacitive touch, Ethernet with PoE, USB OTG FS, SAI audio codec, MEMS microphone, HyperRAM™, Octo-SPI Flash, and multiple expansion connectors including Arduino V3, Pmod, and STMod+. The platform includes an integrated STLINK-V3E debugger and supports a wide range of software tools for efficient application development, making it ideal for embedded system engineers and developers.
STMICROELECTRONICS STM32H735GDK Embedded Development Kit Specifications:
- Microcontroller: STM32H735IGK6U with 1 Mbyte Flash and 564 Kbytes SRAM
- Display: 4.3-inch TFT LCD, 480x272 pixels, capacitive touch
- Memory: 512-Mbit Octal-SPI NOR Flash, 128-Mbit HyperRAM™
- Connectivity: Ethernet compliant with IEEE-802.3-2002, PoE, USB OTG FS
- Audio: SAI audio codec, MEMS digital microphone, audio jack input/output
- Expansion Connectors: Arduino V3, Pmod™, STMod+
- Power Supply: USB, Ethernet (PoE), ARDUINO, USB charger
- Debugger/Programmer: On-board STLINK-V3E with USB Virtual COM port
- Additional Features: Two user LEDs, user and reset push-buttons, microSD card slot, SMA antenna connector
Buy the STMicroelectronics Series Discovery Kit: STM32H735G-DK
Get your hands on the STM32H735G-DK Discovery kit today and accelerate your embedded system projects. Featuring the powerful STM32H735IGK6U microcontroller, with extensive memory, a vivid 4.3-inch touchscreen, Ethernet with PoE, USB, robust audio features, HyperRAM™, and multiple expansion ports, this platform simplifies development for industrial, consumer, and IoT devices. The integrated STLINK-V3E debugger, comprehensive software libraries, and compatibility with IDEs like IAR™, Keil®, and STM32CubeIDE ensure streamlined workflow, fast prototyping, and reliable performance. Order online now for quick delivery and start innovating immediately.
Buy STMicroelectronics STM32H735G-DK discovery kit now and experience unmatched versatility and robust industrial application development capabilities.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STM32H735GDK?
You can click on the BUY or RFQ button to purchase STM32H735GDK from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STM32H735GDK?
You can download the STM32H735GDK datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STM32H735GDK?
STMICROELECTRONICS
