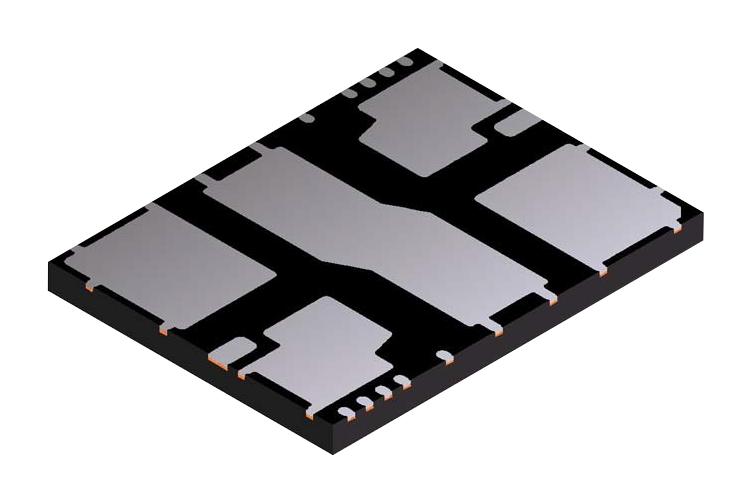

STMICROELECTRONICS PWD13F60 High-Voltage Power Driver
The PWD13F60 is a compact high-density power driver integrating four N-channel power MOSFETs with low Rpg(on) of 320 mΩ and a high-voltage breakdown of 600 V. It features an internal bootstrap diode, wide driver supply voltage range down to 6.5 V, UVLO protection, and supports full bridge and dual half-bridge configurations. Ideal for motor drivers, factory automation, fans, pumps, HID ballasts, power supplies, and DC-AC/DC converters, its design simplifies high-power load drive in a tiny space, ensuring efficient and reliable operation across industrial applications.
STMICROELECTRONICS PWD13F60 High-Voltage Power Driver Specifications:
- Package: VFQFPN 10 x 13 x 1.0 mm
- Drain-source breakdown voltage: 600 V
- Maximum Vps (MOSFET drain-to-source voltage): 600 V
- Supply voltage range (Vcc): 6.5 V to 19 V
- Bootstrap voltage (BOOTx): -0.3 V to 19 V
- Input logic voltage: 0 V to 15 V with hysteresis
- Peak drain current (Ip): 32 A
- Continuous drain current (Id): 8 A
- Thermal resistance junction to exposed pad: 1.41 °C/W
- Thermal resistance junction to ambient: 18 °C/W
- Junction temperature: -40°C to 150°C
- Power dissipation at 25°C: 6.9 W
- Operating temperature: -40°C to 125°C
- Reverse recovery time of diode: 93 ns
- Gate charge (Qg): 26 nC
