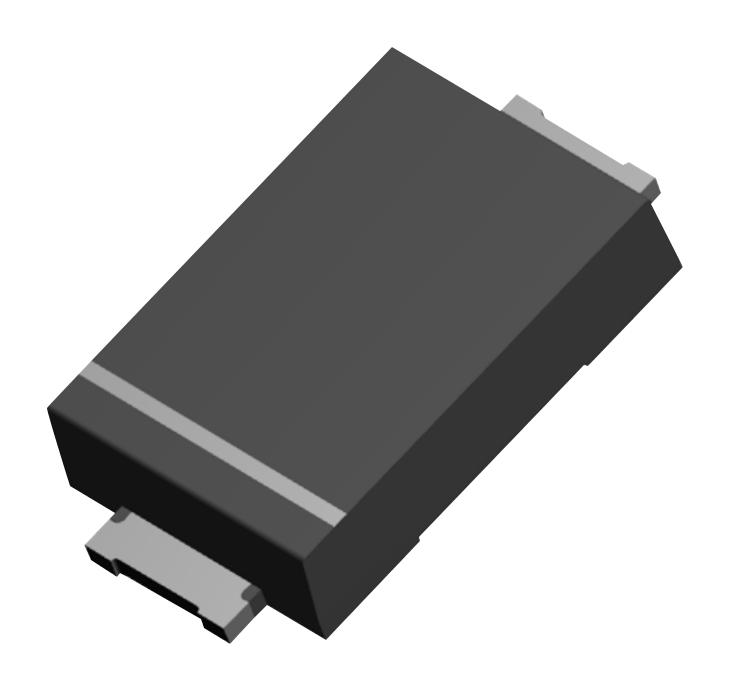

STMICROELECTRONICS SMA4F36A Transient Voltage Suppressor
The SMA4F series are high-power transient voltage suppressor diodes designed to protect sensitive electronic circuits from voltage spikes and surges. Featuring a flat and thin package of just 1 mm, these unidirectional devices support stand-off voltages from 5 V to 188 V and peak pulse power of up to 400 W (10/1000 ps). They comply with multiple safety standards, exhibit low leakage current as low as 0.2 UA, and are suitable for high-end circuits requiring reliable surge protection, long-term stability, and high junction temperature endurance up to 175°C. Ideal for telecommunications, industrial, and consumer electronics.
STMICROELECTRONICS SMA4F36A Transient Voltage Suppressor Specifications:
- Peak pulse power: 400 W (10/1000 ps), 2.5 kW (8/20 ps)
- Package: SMA Flat, thickness 1 mm
- Stand-off voltage: 5 V to 188 V
- Leakage current: 0.2 UA at 25°C, 1 UA at 85°C
- Maximum operating junction temperature: 175°C
- Lead finishing: matte tin plating
- Stand-off voltage maximum: V R
- Storage temperature range: -55°C to +175°C
- Maximum lead soldering temperature: 260°C for 10 seconds
- Compliance: UL94 VO, J-STD-020 MSL level 1, IEC 61000-4-2 (30 kV contact and air discharge)
- Operating voltage and clamping characteristics vary with part number, supporting high-speed transient suppression
- Designed for high reliability in harsh environments, suitable for telecom, industrial circuits, and instrumentation
Buy the Buy STMicroelectronics SMA4F Series Surge Suppressor Part Number SMA4F36A Online
Protect your sensitive electronics with the reliable STMicroelectronics SMA4F36A transient voltage suppressor. Featuring a compact 1 mm thin package, it offers peak pulse power of 400 W and supports stand-off voltages from 5 V to 188 V, making it ideal for telecom, industrial, and consumer applications. This unidirectional TVS diode complies with key standards, provides low leakage current, and withstands operating temperatures up to 175°C, ensuring long-term stability and robust surge suppression in harsh environments. Purchase online now for fast, secure delivery.
Order your STMicroelectronics SMA4F36A series surge protection diode today and ensure high-quality transient voltage suppression for your circuits.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS SMA4F36A?
You can click on the BUY or RFQ button to purchase SMA4F36A from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part SMA4F36A?
You can download the SMA4F36A datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of SMA4F36A?
STMICROELECTRONICS
