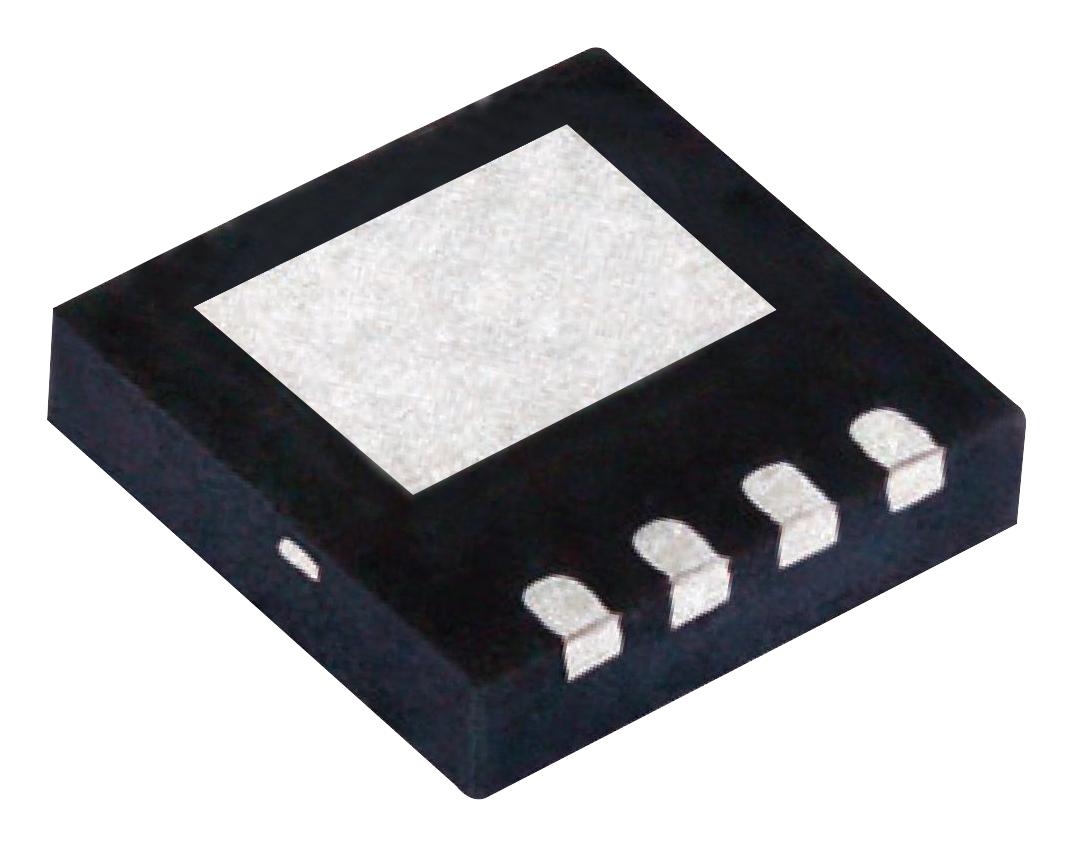

STMICROELECTRONICS STPSC10H065DLF Silicon Carbide Schottky Diode
The STPSC10H065DLF is a high-performance 650 V, 10 A silicon carbide Schottky diode in the PowerFLAT 8x8 HV package. Designed for high surge capability, low drop forward voltage, and negligible reverse recovery, it is ideal for boost PFC, high frequency inverter, and renewable energy applications. Its minimal capacitive turn-off behavior remains temperature-independent, ensuring reliable operation in industrial environments. Manufactured with eco-friendly features, it offers excellent efficiency, making it suitable for telecom, network, and industrial power systems with space constraints.
STMICROELECTRONICS STPSC10H065DLF Silicon Carbide Schottky Diode Specifications:
- Maximum Voltage: 650 V
- Maximum Forward Current: 10 A
- Peak Repetitive Forward Surge Current: 80 A
- Average Forward Current at 125°C: 10 A
- Reverse Leakage Current at 150°C: 85 μA
- Forward Voltage Drop at 10 A, 25°C: 1.38 V
- Junction Capacitance at 400 V: 55 pF
- Operating Junction Temperature Range: -40°C to +175°C
- Storage Temperature Range: -55°C to +175°C
- Thermal Resistance Junction to Case: 1.65 °C/W
- Package: PowerFLAT 8x8 HV
- Device complies with ECOPACK standards
- High creepage package, negligible reverse recovery, temperature-independent switching
Buy the Buy STMicroelectronics STPSC10HO65DLF Part Number STPSC10HO65DLF Online
Purchase the STPSC10HO65DLF silicon carbide Schottky diode online for efficiency and space-saving in industrial, telecom, and renewable energy applications. This 650 V, 10 A diode features minimal reverse recovery, very low forward voltage drop, and high surge capability, making it ideal for high frequency inverters and boost PFC circuits. Its PowerFLAT 8x8 HV package ensures high creepage and robust performance in compact designs. Trust STMicroelectronics for high quality, eco-friendly components tailored for demanding power applications requiring space economy and thermal stability.
Buy STMicroelectronics STPSC10HO65DLF now and experience unmatched reliability and performance in high-efficiency silicon carbide power diodes in compact PowerFLAT packaging.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STPSC10H065DLF?
You can click on the BUY or RFQ button to purchase STPSC10H065DLF from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STPSC10H065DLF?
You can download the STPSC10H065DLF datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STPSC10H065DLF?
STMICROELECTRONICS
