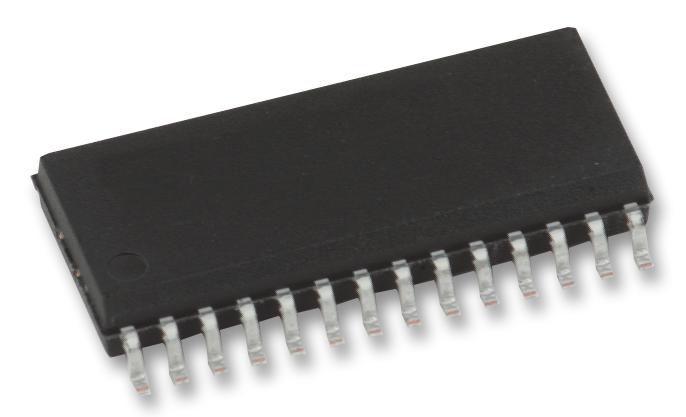

STMICROELECTRONICS ST8024CDR Smartcard Interface IC
The ST8024 is a cost-effective smartcard interface IC designed for asynchronous 3 V and 5 V smart cards, suitable for set-top box readers, banking IC readers, and pay TV applications. It features supply protection, voltage regulation, clock generation, and fault detection. Designed to be compatible with ISO 7816 and EMV standards, the device includes a DC-DC converter, thermal and overload protections, and a crystal oscillator. It simplifies smartcard interface design by combining multiple functions into a small TSSOP28 or SOP-28 package, ensuring reliable operation in various embedded systems.
STMICROELECTRONICS ST8024CDR Smartcard Interface IC Specifications:
- Supply Voltage: 2.7 to 6.5 V (Vpp), 3 V and 5 V card power supply
- Supported Standards: ISO 7816, GSM11.11, EMV
- Package Types: SO-28, TSSOP-28 (tape and reel)
- Crystal Oscillator Frequency: Up to 26 MHz
- Clock Output: Divided by 1, 2, 4, or 8 with synchronous switching
- Maximum Operating Temperature: -25°C to 85°C
- Electrical Characteristics: Vpp = 3.3 V, Vppp = 5 V, fxtal = 10 MHz, typical voltage and current levels
- Protection Features: Thermal shutdown, overload, short-circuit protection, ESD protection (>6 kV)
- Voltage Regulation: Vcc regulated to 5 V or 3 V, with overload and Spike detection
- Power Consumption: Active mode current approx. 15 mA, standby lower
- Input/Output Lines: Data, auxiliary, reset, clock with pull-ups, transition times within 1.2 us
- Input Voltages: Logic high at 0.7Vpp, logic low at 0.3Vpp, leakage current below 1 pA
- Mechanical Data: TSSOP28 and SO-28 package dimensions as per datasheet standards
- Reliability: Overcurrent, short circuit detection, EMI and ESD protection
- Environmental Ratings: Operational up to 85°C, RoHS compliant
Buy the STMicroelectronics ST8024 U+2013 Reliable Smartcard Interface for Industrial Applications
Enhance your smartcard system with the ST8024 IC, offering reliable supply protection, clock control, fault detection, and compatibility with ISO standards. Ideal for banking, pay TV, and set-top box applications, this compact device simplifies design while ensuring dependable performance. Available in TSSOP28 and SO-28 packages, it features integrated voltage regulation, ESD protection, and a crystal oscillator, enabling seamless integration into embedded systems. Purchase online now to improve system reliability and meet industry standards effortlessly.
Order your STMicroelectronics ST8024 smartcard interface IC today and ensure reliable, standards-compliant communication for industrial smartcard systems.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS ST8024CDR?
You can click on the BUY or RFQ button to purchase ST8024CDR from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part ST8024CDR?
You can download the ST8024CDR datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of ST8024CDR?
STMICROELECTRONICS
