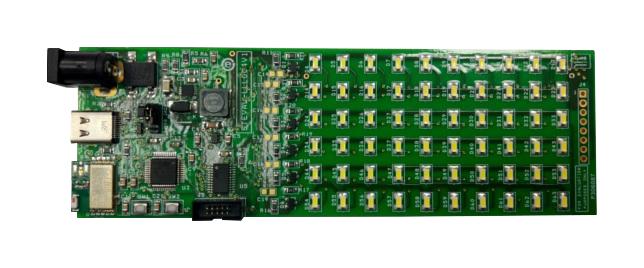

STMICROELECTRONICS STEVALLLL005V1 LED Matrix Driver Module
The STEVAL-LLLO05V1 evaluation board features a cost-effective 6x10 LED matrix driven by the STP16CPC26 low voltage 16-bit constant current LED sink driver. It offers individual LED control with row-wise scanning and includes USB Type-C and DC jack power options. The board integrates Bluetooth Smart v4.1 connectivity via a SPBTLE-RF module, managed by an STM32F030 Cortex-M0 microcontroller with 64 KB Flash at 48 MHz. It supports demo modes with brightness, speed, and flashing rate controls, making it ideal for compact, wireless LED display projects and Bluetooth-enabled industrial or consumer displays.
STMICROELECTRONICS STEVALLLL005V1 LED Matrix Driver Module Specifications:
- LED Matrix: 6x10 configuration with individual LED control
- LED Driver: STP16CPC26, 16-bit constant current sink
- Microcontroller: STM32F030 Cortex-M0, 64 KB Flash, 48 MHz
- Power Input: USB Type-C or DC jack with input selection jumper
- Connectivity: Bluetooth Smart v4.1 via SPBTLE-RF module
- Control: Android app and demo modes with brightness, speed, and flashing rate controls
- Board Features: Daisy chain stacking connector, onboard switches for demo selection
- Power Regulation: Includes DC-DC step-down and LDO regulators
- Dimensions: Not specified but compact design for embedded applications
- Additional: Programmable via 5x2 header and microcontroller interface
Buy the STMicroelectronics STEVALLL005V1 – Reliable LED Matrix Driver for Industrial Applications
Purchase the LED Matrix Driver Module online today to power compact, Bluetooth-enabled LED displays. Designed for reliability and ease of use, this module features a 6x10 LED matrix driven by an efficient STP16CPC26 driver with individual LED control. The board includes Bluetooth Smart v4.1 connectivity managed by an STM32F030 microcontroller, providing seamless wireless communication. Power options include USB Type-C and DC input with onboard regulation, making it suitable for industrial, consumer, and embedded display applications. Order now for fast delivery and reliable performance.
Get STMicroelectronics STEVALLL005V1 today—built for wireless LED displays with Bluetooth control and versatile power options.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STEVALLLL005V1?
You can click on the BUY or RFQ button to purchase STEVALLLL005V1 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STEVALLLL005V1?
You can download the STEVALLLL005V1 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STEVALLLL005V1?
STMICROELECTRONICS
