STMICROELECTRONICS STEVALESC001V1 Electronic Speed Controller
The firmware package for the STEVAL-ESC001V1 board from STMicroelectronics provides high-performance electronic speed control for low-voltage three-phase BLDC and PMSM motors. It features sensorless Field Oriented Control with embedded speed regulation, active braking, and routines for PWM detection from external signals, ideal for integration with flight controllers. Safety features include arming/disarming, motor restart during stalls, and support for UART and SWD communication interfaces. Compatible with the ST motor profiler, it supports peak currents up to 30A, making it suitable for industrial, automotive, and drone motor drive applications.
STMICROELECTRONICS STEVALESC001V1 Electronic Speed Controller Specifications:
- Microcontroller: 48-pin STM32 ARM Cortex-M4 with FPU, 128 Kbytes Flash, 72 MHz
- Driver: L6398 with three discrete N-channel 30 V, 160 A STripFET™ H7 Power MOSFETs
- Supported voltage range: 11.1 V to 22.2 V (3S-6S Li-Po battery)
- Maximum RMS output current: 20 Arms
- Output peak current: 30 A
- Communication interfaces: UART, CAN, I²C, SWD
- Protection features: Overcurrent, overvoltage, thermal overheating
- Additional: BEC 5 V, 0.5 A for external circuits, active safety and protection circuits
- Form factor: 29.1 mm x 58 mm, multi-layer FR-4 PCB, RoHS compliant

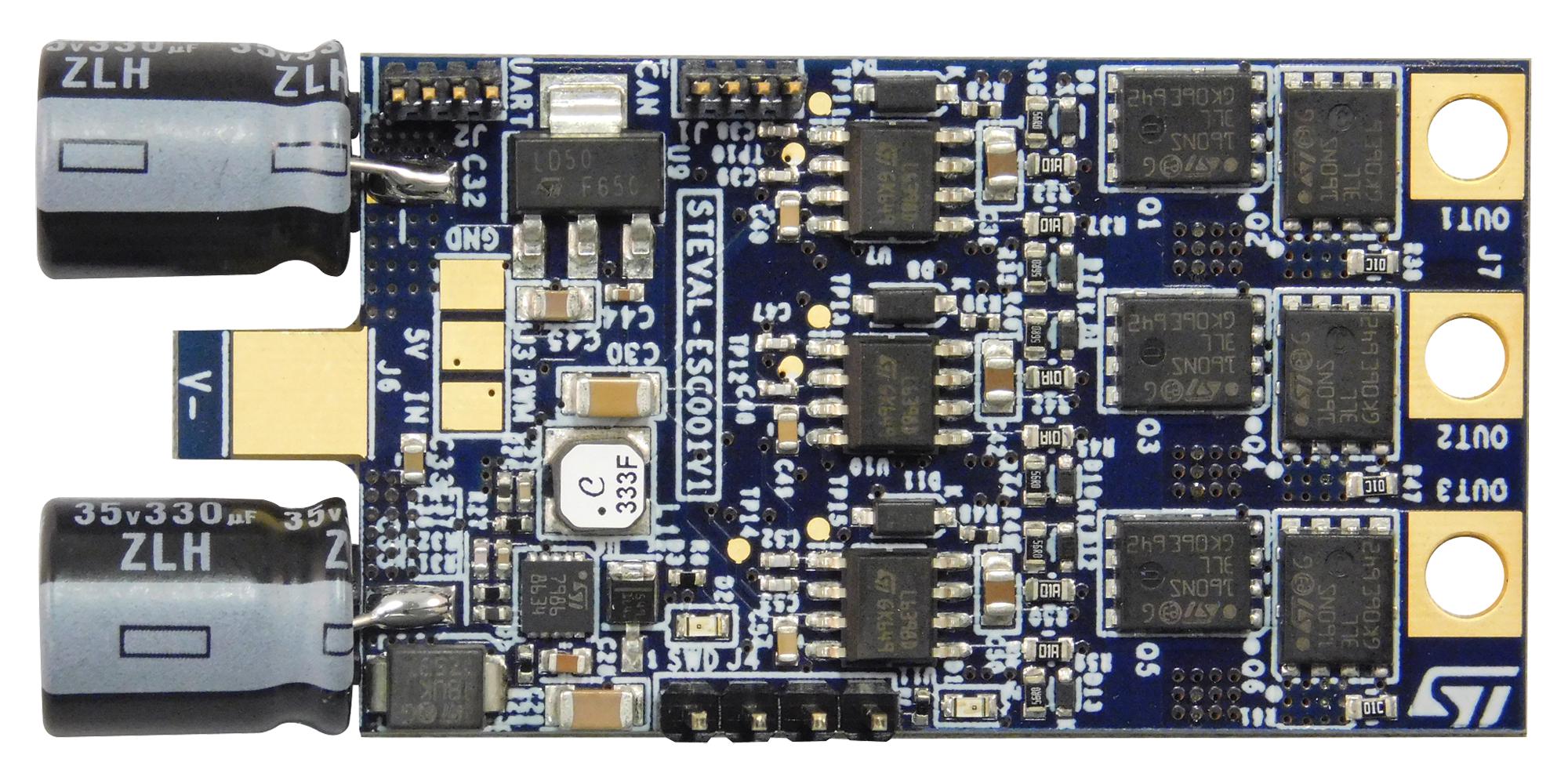

Buy the Buy STMicroelectronics ESC Part Number STEVALESC001V1 Online
Discover the advanced STMicroelectronics electronic speed controller for three-phase brushless motors. Ideal for drones, RC vehicles, and industrial drives, it features sensorless FOC, embedded protection, and support for high peak currents up to 30A. Its compact design supports voltages from 11.1 V to 22.2 V, making it suitable for various applications including UAVs and electric vehicles. Purchase online today and ensure your project benefits from reliable, efficient, and safe motor control technology.
Buy STMicroelectronics STEVAL-ESC001V1 now and gain reliable, high-performance motor control for BLDC and PMSM applications with safety features and versatile communication.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STEVALESC001V1?
You can click on the BUY or RFQ button to purchase STEVALESC001V1 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STEVALESC001V1?
You can download the STEVALESC001V1 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STEVALESC001V1?
STMICROELECTRONICS
