STMICROELECTRONICS STEVALILL070V4 LED Driver

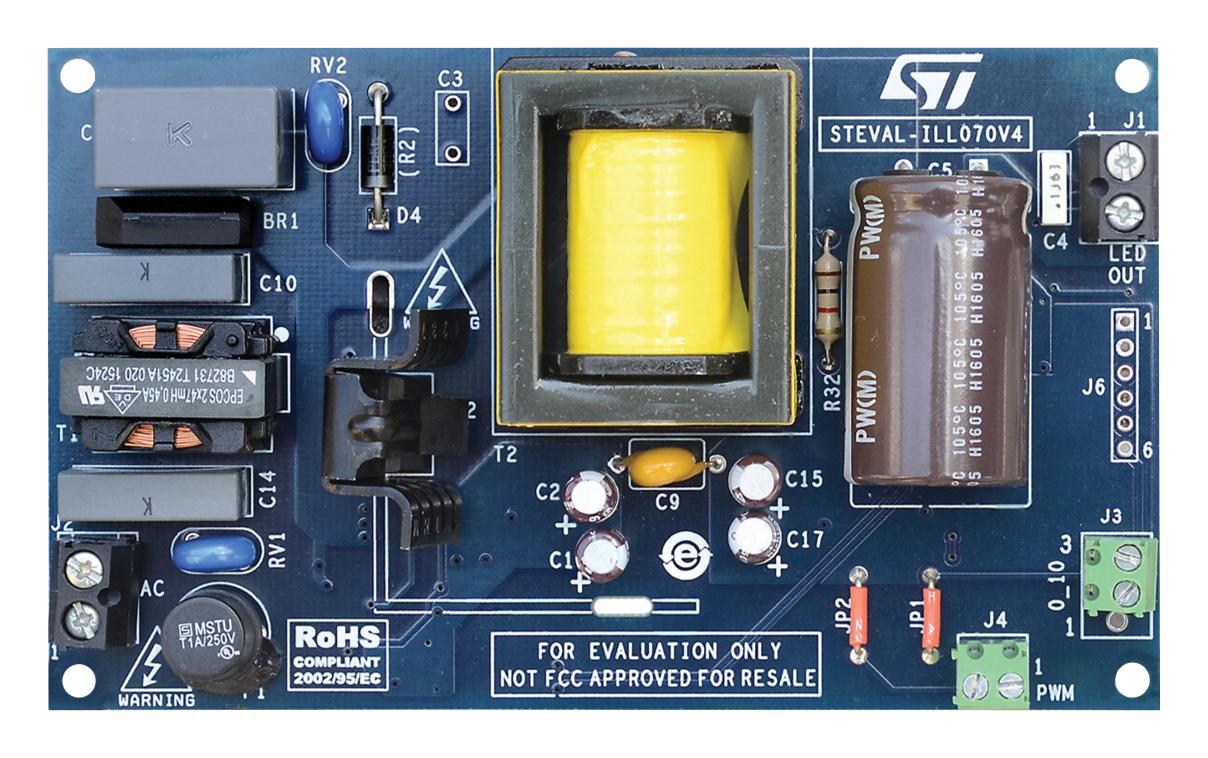

The STEVAL-ILLO70V4 is a versatile LED driver designed for driving a single LED string with a maximum output current of 700 mA, featuring precise current adjustment via 0-10 V or PWM signals. It supports universal input voltage of 90-305 V and includes protections against overvoltage and overcurrent, ensuring reliable operation. This high-efficiency driver offers high power factor, low THD, and optional remote turn-off, along with a linear regulator output for auxiliary circuits. Its automatic output discharge adds safety, making it ideal for indoor and outdoor lighting applications requiring customizable brightness control.
STMICROELECTRONICS STEVALILL070V4 LED Driver Specifications:
- Input Voltage: 90 - 305 V AC, 45 - 66 Hz
- Output Current: 700 mA
- Output Voltage Range: 24 V to 48 V
- Dimming: 100% to 10% via 0-10 V or PWM
- Efficiency: > 90% at full load
- Power Factor: High with low THD
- Open Load Voltage Limit: 52.4 V
- Protections: Overvoltage, overload, auto restart
- Output Discharge: Automatic at turn-off for safety
- Auxiliary Regulator: 3.3 V at 0.1 A
- Compliance: RoHS
- Features: Optional remote turn-off, fast discharge
Buy the STMicroelectronics Series STEVAL-ILLO70V4 LED Driver: 700 mA Dimmable
Enhance your lighting systems with the STMicroelectronics Series STEVAL-ILLO70V4 high-performance LED driver. Featuring 700 mA output, universal input voltage, and advanced dimming capabilities via 0-10 V or PWM, it provides precise brightness control and high efficiency. Built-in protections against overvoltage and overload ensure safety and durability. The optional auxiliary regulator supports IoT wireless modules, making it ideal for smart lighting applications. Easy to integrate and RoHS compliant, order this reliable LED driver online for your professional installations today.
Order your STMicroelectronics Series STEVAL-ILLO70V4 high-efficiency LED driver today and ensure reliable, customizable lighting control for your projects.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STEVALILL070V4?
You can click on the BUY or RFQ button to purchase STEVALILL070V4 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STEVALILL070V4?
You can download the STEVALILL070V4 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STEVALILL070V4?
STMICROELECTRONICS
