STMICROELECTRONICS STEVALMIC001V1 Digital MEMS Microphone Board

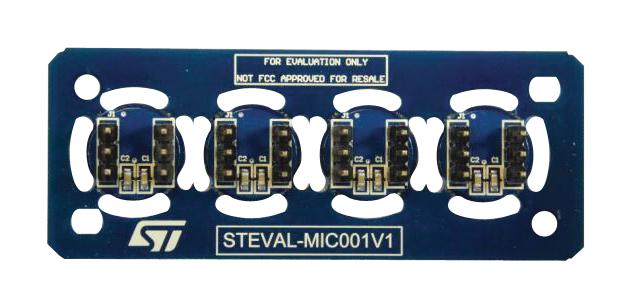

This is a microphone daughterboard based on the MP34DT05-A digital MEMS microphones. It features four top-port MP34DT05-A microphones suitable for high-quality audio applications and is designed for use with the X-NUCLEO-CCA02M1 development kit. The board operates with a supply voltage ranging from 1.6V to 3.6V, and provides an omnidirectional sensitivity with a 122.5 dBSPL acoustic overload point. It offers PDM single-bit output, with a signal-to-noise ratio of 64 dB and a sensitivity of -26 dBFS ±3 dB.
STMICROELECTRONICS STEVALMIC001V1 Digital MEMS Microphone Board Specifications:
- Number of microphones: 4
- Microphone type: Digital MEMS MP34DT05-A
- Supply voltage: 1.6V to 3.6V
- Output format: PDM single-bit
- Acoustic overload point: 122.5 dBSPL
- Sensitivity: -26 dBFS ±3 dB
- Signal-to-noise ratio: 64 dB
- Operates via daughterboard with X-NUCLEO-CCA02M1 expansion
- Design for high-quality audio detection, suitable for embedded applications
- RoHS compliant
Buy the Buy STMicroelectronics MP34DT05-A Daughterboard Part Number STEVALMIC001V1 Online
Enhance your audio system with this high-quality digital MEMS microphone daughterboard featuring four MP34DT05-A microphones. Designed to be compatible with NUCLEO expansion packs, it operates from 1.6V to 3.6V, delivering excellent sensitivity, a high overload point, and low power consumption. Perfect for embedded audio solutions, voice recognition, and noise detection, this RoHS-compliant board ensures reliable performance in compact spaces. Purchase online today to improve your project's audio functionalities with this advanced microphone array.
Buy STMicroelectronics STEVALMIC001V1 now and experience high-resolution digital MEMS microphone performance for your audio projects.
