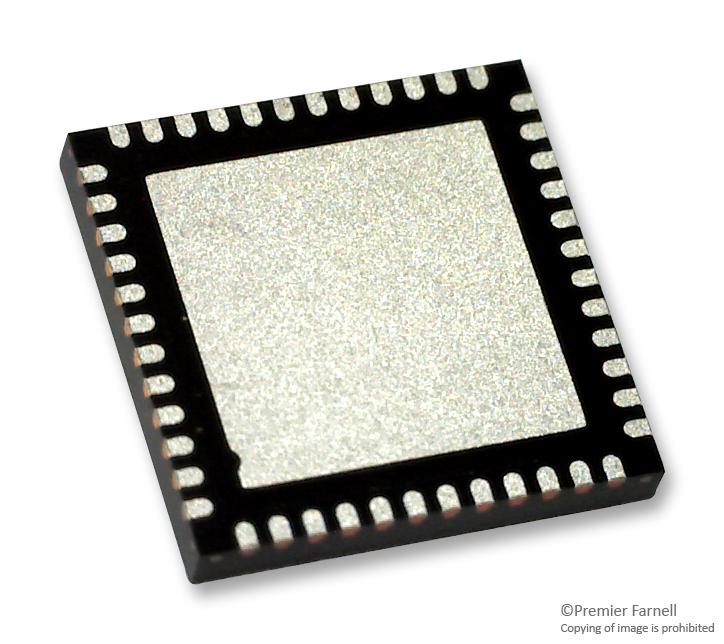

STMICROELECTRONICS STM32WB35CCU7A Wireless Microcontroller
The STM32WB55xx and STM32WB35xx are advanced multiprotocol wireless microcontrollers featuring a high-performance Arm Cortex-M4 core operating at up to 64 MHz, integrated radio supporting Bluetooth 5 and IEEE 802.15.4. They include extensive memory options, multiple communication interfaces, sophisticated power-management modes, and integrated security features such as hardware encryption and secure firmware installation. Designed for ultra-low-power applications, these devices support multiple peripherals including ADC, timers, LCD controller, and capacitive sensing, making them ideal for IoT, wearable, and embedded wireless systems.
STMICROELECTRONICS STM32WB35CCU7A Wireless Microcontroller Specifications:
- Flash Memory: 256K/512K/1MB depending on model
- SRAM: 96K/128K/256K, with up to 64K/192K SRAM1 and additional SRAM2
- Core: Arm Cortex-M4 with FPU, running up to 64 MHz
- Radio Support: Bluetooth 5, IEEE 802.15.4, Zigbee, Thread
- Memory Protection: MPU, R/W, and code readout protection
- Cryptography: Hardware AES, RSA, ECC, True RNG
- Peripherals: 1x USART, 2x I2C, 2x SPI, 1x USB FS, 1x UART, LCD up to 8x40, capacitive sensing up to 18 sensors
- Analog: 13/19 channels 12-bit ADC, ultra-low-power comparators
- Power Management: Multiple low-power modes, integrated SMPS with automatic bypass, backup power supply options
- Operating Voltage: 1.71V to 3.6V
- Temperature Range: -40°C to +105°C
- Package Options: 48, 64, 96, 128, 192, 256, 512, 1M Flash variants, up to 72 GPIOs
Buy the STMicroelectronics Series WB Wireless MCU: STM32WB55CCU7A
Purchase the STM32WB55CCU7A online now to harness advanced wireless communication capabilities with Bluetooth 5 and IEEE 802.15.4 support. Ideal for IoT, smart devices, and wearables, this MCU combines high performance with low power consumption and robust security features. Its extensive memory, multiple peripherals, and flexible power modes enable you to develop innovative wireless applications efficiently. Buy online today and elevate your project with trusted brand quality, reliable performance, and fast delivery of this cutting-edge wireless microcontroller.
Get STMicroelectronics STM32WB55CCU7A today—built for ultra-low-power wireless IoT, secure data processing, and flexible embedded connectivity.
