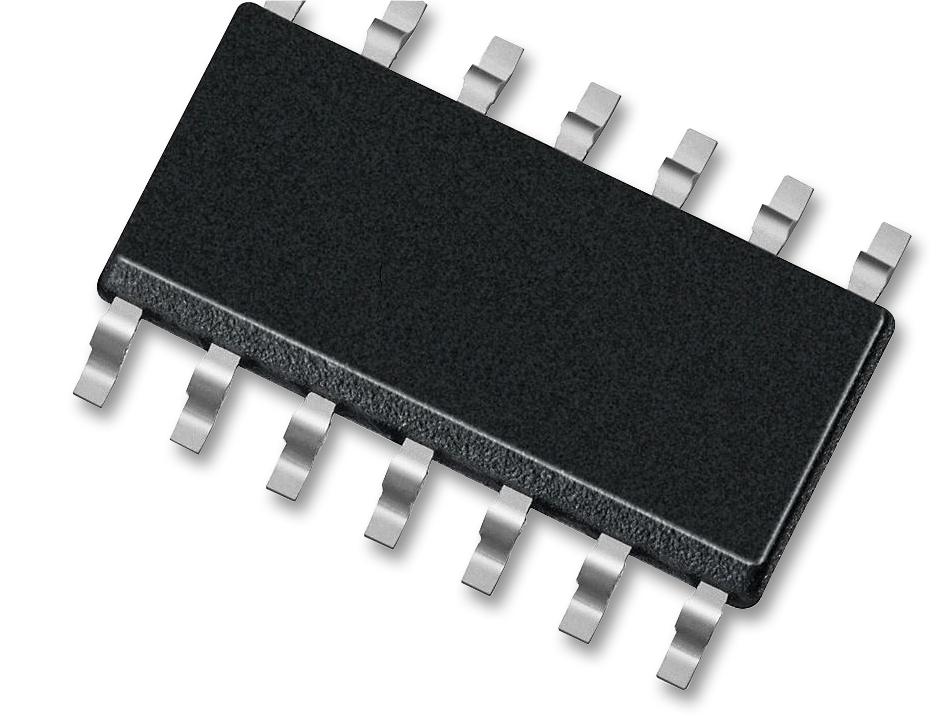

STMICROELECTRONICS TL084BIDT Operational Amplifier
The TL084BIDT is a high-performance operational amplifier featuring high slew rate, low input bias and offset currents, and internal frequency compensation. Suitable for audio distribution, filtering, and voltage follower applications, it provides wide common-mode voltage range and latch-up free operation. Available in DIP14, TSSOP14, and SO-14 packages, it ensures reliability in various industrial and electronic projects, with specifications including supply voltage range of 6 to 36 V, operating temperature from -40°C to +105°C, and high input impedance for precision signal amplification. Its robust design makes it ideal for demanding signal processing tasks.
STMICROELECTRONICS TL084BIDT Operational Amplifier Specifications:
- Supply Voltage Range: 6 to 36 V
- Operating Temperature Range: -40°C to +105°C
- Max Voltage Supply: +18 V
- Input Voltage: ±41.5 V
- Differential Input Voltage: ±30 V
- Thermal Resistance Junction to Ambient (DIP14): 80°C/W
- Thermal Resistance Junction to Case (DIP14): 33°C/W
- Power Dissipation: 680 mW
- Output Short-Circuit Duration: Infinite
- Package Options: DIP14, TSSOP14, SO-14
- Human Body Model (HBM) ESD Immunity: 1000 V
- Machine Model (MM) ESD Immunity: 150 V
- Charged Device Model (CDM) ESD Immunity: 1500 V
- Slew Rate: 16 V/μs (typical)
- Gain Bandwidth Product: 25 MHz
- Input Offset Voltage: 2 mV (typical)
- Input Bias Current: 20 pA (typical)
- Common Mode Rejection Ratio: 80-86 dB
Buy the ST Microelectronics Series TLO84B High-Speed Op-Amp: TL084BIDT
Purchase the high-performance operational amplifier from ST Microelectronics online today. The TLO84BIDT offers excellent slew rate, low bias currents, and internal frequency compensation, making it ideal for various industrial and electronic applications. Its broad supply voltage range of 6 to 36 V ensures compatibility with multiple systems, while the DIP14, TSSOP14, and SO-14 packages provide flexibility for design integration. Trust this reliable amplifier for demanding signal processing tasks and enhance your project's performance with ease and confidence.
Order your ST Microelectronics Series TLO84B high-performance operational amplifier today and give your precision signal processing projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS TL084BIDT?
You can click on the BUY or RFQ button to purchase TL084BIDT from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part TL084BIDT?
You can download the TL084BIDT datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of TL084BIDT?
STMICROELECTRONICS
