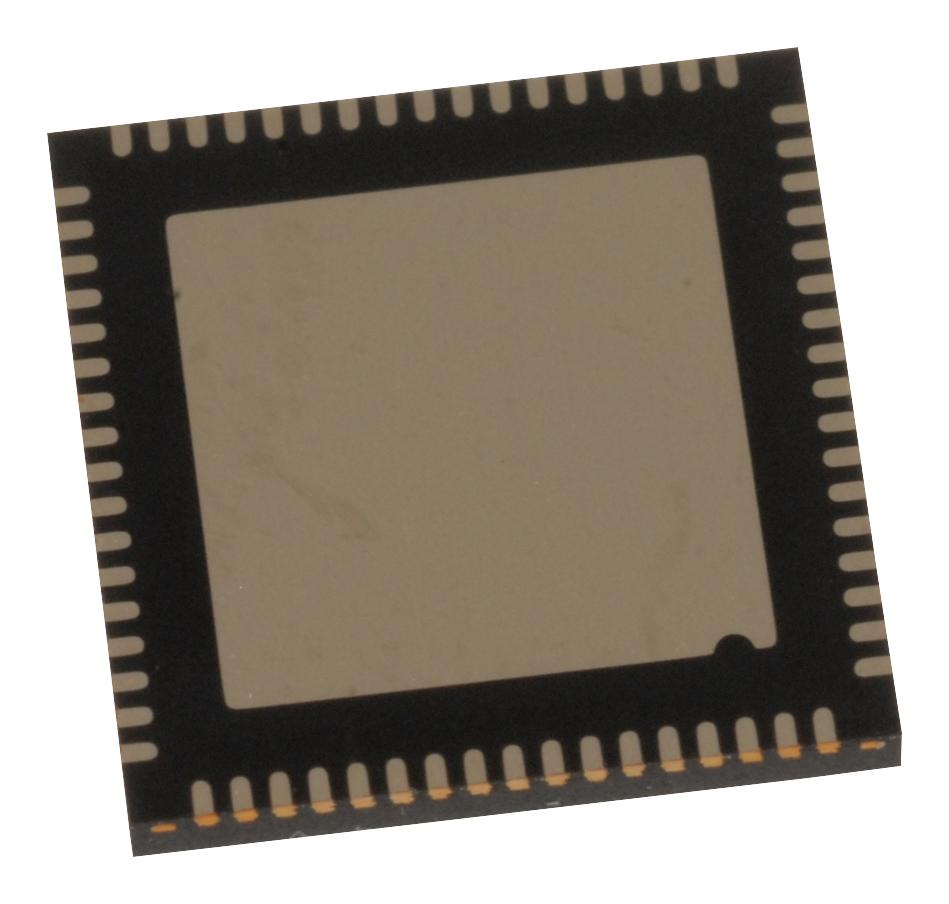

STMICROELECTRONICS STM32WB55REV6 Wireless Microcontroller
The STM32WB55xx multiprotocol wireless microcontroller features ultra-low power consumption and robust dual-core architecture with Arm Cortex-M4 and Cortex-M0+. It supports Bluetooth 5, IEEE 802.15.4, Thread, and ZigBee protocols with integrated high-performance RF transceivers ranging from -96 dBm to +6 dBm power output. It includes high-speed memory options up to 1 MB Flash, 256 KB SRAM, advanced timers, multiple communication interfaces like USART, SPI, I2C, USB, and dedicated security features including hardware encryption and true random number generator. Its extensive peripherals and low power modes make it ideal for IoT and industrial wireless applications.
STMICROELECTRONICS STM32WB55REV6 Wireless Microcontroller Specifications:
- Core: Arm® Cortex®-M4 with FPU, operating up to 64 MHz
- Memory: Up to 1 MB Flash, 256 KB SRAM
- Radio: 2.4GHz RF transceiver supporting Bluetooth® 5, IEEE 802.15.4, Thread, ZigBee® 3.0
- RX Sensitivity: -96 dBm (BLE at 1 Mbps), -100 dBm (802.15.4)
- Programmable output power: up to +6 dBm in 1 dB steps
- Power Supply: 1.71 V to 3.6 V, operating temperature: -40°C to 85/105°C
- Low-power modes: 13 nA shutdown, 600 nA standby, 2.1 nA stop mode with RTC
- Interfaces: USART, LPUART, SPI (2x), I2C (2x), USB 2.0 FS, Quad-SPI XIP
- Analog peripherals: 12-bit ADC 4.26 Msps, ultra-low-power comparators
- Timers: 16-bit, 32-bit, advanced and low-power timers
- Security: AES 256-bit, HW PKA, RNG, customer key storage, CRC, unique IDs
- Clock sources: 32 MHz crystal oscillator, RTC 32.768 kHz, MSI multi-speed RC
- Package options: UFQFPN48, VFQFPN68, WLCSP100, BGA129
Buy the STM32WB55xx – Reliable Wireless MCU for Industrial Applications
Purchase the STM32WB55xx wireless microcontroller online today and enhance your IoT and industrial wireless solutions with advanced Bluetooth 5, IEEE 802.15.4 support, high-speed memory, and extensive peripherals. Its ultra-low-power design ensures optimal energy efficiency for battery-powered applications. Whether you're developing smart sensors, industrial automation, or connected devices, this reliable and secure MCU delivers the performance, connectivity, and flexibility needed to succeed. Order now and integrate cutting-edge wireless technology into your projects seamlessly.
Order your STM32WB55xx wireless microcontroller today and give your IoT projects the dependable, low-power performance they need for industrial environments.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STM32WB55REV6?
You can click on the BUY or RFQ button to purchase STM32WB55REV6 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STM32WB55REV6?
You can download the STM32WB55REV6 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STM32WB55REV6?
STMICROELECTRONICS
