STMICROELECTRONICS STPS120L15TV High-Voltage Schottky Rectifier
The STPS120L15TV is a dual Schottky rectifier designed for switched-mode power supplies and DC-DC converters. Packaged in ISOTOP™, it features very low forward voltage drop, reducing power dissipation and heatsink requirements. With an insulation voltage of 2500 Vrms and avalanche capability, this diode supports fault-tolerant power circuits. It handles a maximum repetitive peak inverse voltage of 15 V, average forward current of 60 A at 115°C, and surge currents up to 1200 A. Its low junction capacitance of 45 pF and thermal resistance of 0.45°C/W ensure efficient performance in demanding applications, with a maximum junction temperature of 125°C.
STMICROELECTRONICS STPS120L15TV High-Voltage Schottky Rectifier Specifications:
- Repetitive peak reverse voltage: 15 V
- Average forward current: 60 A at 115°C
- Surge non-repetitive forward current: 1200 A
- Maximum junction temperature: 125°C
- Peak avalanche power: 720 W
- Insulation voltage: 2500 Vrms
- Capacitance: 45 pF
- Junction to case thermal resistance: 0.45°C/W
- Reverse leakage current: 22 mA at 12V, 450 mA at 5V at 25°C
- Forward voltage drop: 0.43 V at 60A at 25°C
- Dimensions: Length 37.80–38.20 mm, width 7.8–8.2 mm
- Package: ISOTOP™, weight approximately 28 g
- Operating temperature range: -65°C to +150°C
- Isolation voltage: 2500 Vrms
- Material: Epoxy resin meeting UL94 V-0
- Environmental: Storage temperature -65°C to +150°C

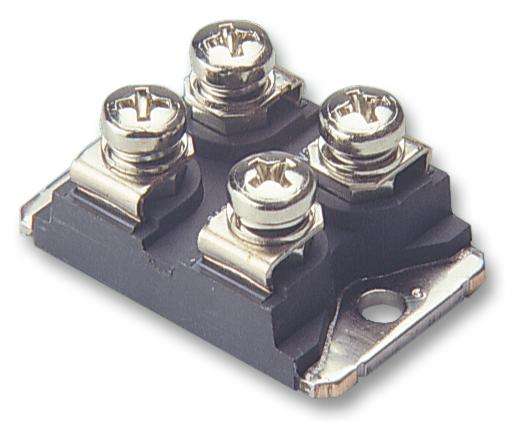

Buy the Buy STMicroelectronics STPS120L15TV Part Number STPS120L15TV Online
Order the STMicroelectronics STPS120L15TV now and enhance your power supply designs with this dual Schottky rectifier. Featuring very low forward voltage, high surge capacity, and excellent thermal performance, it ensures reliable operation in fault-tolerant power systems. Packaged in ISOTOP™, it offers high insulation voltage and efficient heat dissipation, reducing heatsink needs. This diode is ideal for switching power supplies and DC/DC converters, providing outstanding efficiency, durability, and safety for demanding electronic applications. Purchase online today for fast delivery and superior performance.
Get STMicroelectronics STPS120L15TV today—built for efficient power conversion and high-reliability in demanding applications.
