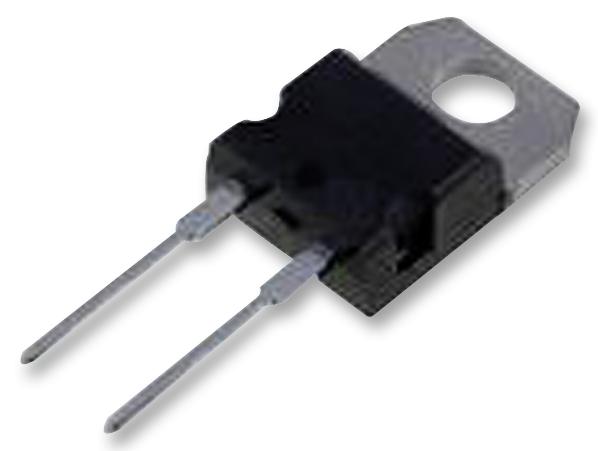

STMICROELECTRONICS STPSC8065DY Power Diode
The STPSC8065-Y is an ultra-high performance power Schottky silicon carbide diode designed for automotive and power supply applications. Manufactured with a silicon carbide substrate, it features a 650 V rating, negligible reverse recovery, and high forward surge capability, making it ideal for PFC and hard switching conditions. Its robust construction ensures stability across a wide temperature range from -40°C to 175°C, with low conduction losses, and compliance with ECOPACK®2 environmental standards. This device enhances efficiency and reliability in demanding electronic power systems.
STMICROELECTRONICS STPSC8065DY Power Diode Specifications:
- Voltage Rating: 650 V
- Repetitive peak reverse voltage: 650 V
- Forward rms current: 22 A
- Average forward current: 8 A (at 150°C)
- Surge forward current: 36 A (at 150°C), 38 A (at 125°C)
- Reverse leakage current: 1.45 V forward voltage at 8A, 150°C
- Maximum operating junction temperature: 175°C
- Storage temperature range: -65°C to +175°C
- Thermal resistance junction to case: 1.65 °C/W
- Capacitance: 45 pF at 400 V reverse voltage
- Total capacitive charge: 28 nC at 400 V
- Device package: TO-220AC
- Compliance: ECOPACK®2
- Cooling method: conduction by heat sink
- Recommended torque: 0.55 N-m
Buy the Buy STMicroelectronics STPSC8065-Y Part Number STPSC8065DY Online
Purchase your STPSC8065DY high-voltage silicon carbide power diode online today. This device delivers exceptional efficiency in automotive and power supply systems, with high surge capacity and low losses. Its wide temperature range, rugged construction, and ECOPACK®2 compliance make it ideal for demanding applications. Secure quick delivery and reliable performance for your projects. Whether for industrial power conversion or automotive systems, this diode provides robust performance, ensuring your designs operate smoothly and efficiently in challenging environments.
Order your STMicroelectronics Series STPSC8065DY 650V Silicon Carbide Diode today and enhance your power systems with dependable, high-performance components.
