STMICROELECTRONICS STTH1008DTI High Voltage Power Diode
The STTH1008DTI is a high-performance ultrahigh voltage diode consisting of two 400 V dice in series, designed for efficient rectification in power electronics. Featuring very low switching losses and insulated construction with internal ceramic, it ensures reliable operation with equal thermal conditions for both diodes. Capable of handling 10 A average forward current and up to 800 V reverse voltage, it is suitable for high-voltage power supplies, converters, and industrial applications. Its robust thermal management and dynamic electrical characteristics make it ideal for demanding environments requiring durable, efficient diode performance.
STMICROELECTRONICS STTH1008DTI High Voltage Power Diode Specifications:
- Repetitive peak reverse voltage: 800 V
- Average forward current: 10 A at 85°C
- Surge non-repetitive forward current: 120 A
- Maximum junction temperature: 150°C
- Storage temperature range: -65°C to +175°C
- Thermal resistance junction to case: 25 °C/W
- Forward voltage drop: 2.05–2.45 V at 85 A
- Reverse leakage current: 20–200 μA at 25°C, 200–710 μA at 150°C
- Reverse recovery time: 180 ns
- Package: TO-220AC with insulated ceramic inside
- Dimensions (mm): A 15.20-15.90, B 10.00-10.40, e 4.80-5.40
- Cooling method: conduction, recommended torque: 0.4 to 0.6 N-m

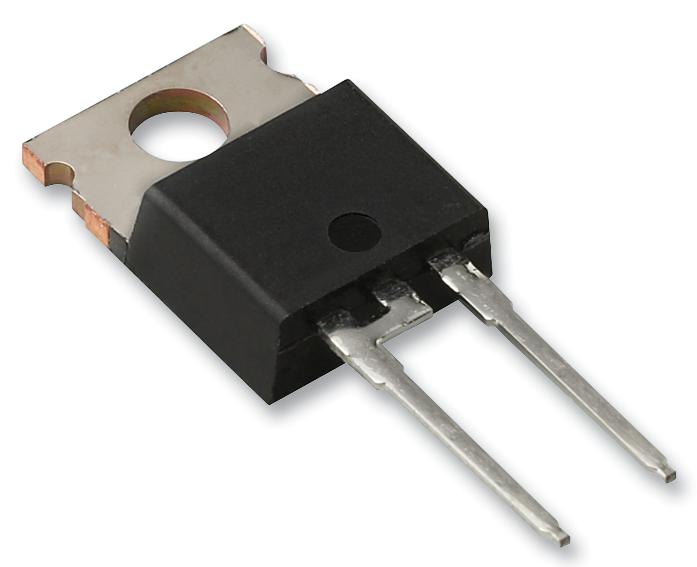

Buy the Buy STMicroelectronics High Voltage Rectifier Part Number STTH1008DTI Online
Order the STTH1008DTI online today and enhance your power electronics with this ultrahigh performance diode. Featuring 800 V reverse voltage and 10 A continuous current, it ensures efficient rectification for industrial, power supply, and converter systems. Its series design with internal ceramic insulation guarantees thermal stability and low switching losses, improving overall system efficiency. Easy to install with specified torque and thermal management, this diode is an excellent choice for demanding high-voltage applications requiring durability and consistent performance.
Buy STMicroelectronics STTH1008DTI high-voltage diode now and experience unmatched reliability and performance in power conversion and industrial applications.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STTH1008DTI?
You can click on the BUY or RFQ button to purchase STTH1008DTI from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STTH1008DTI?
You can download the STTH1008DTI datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STTH1008DTI?
STMICROELECTRONICS
