STMICROELECTRONICS TSV914AIYPT Automotive Operational Amplifier

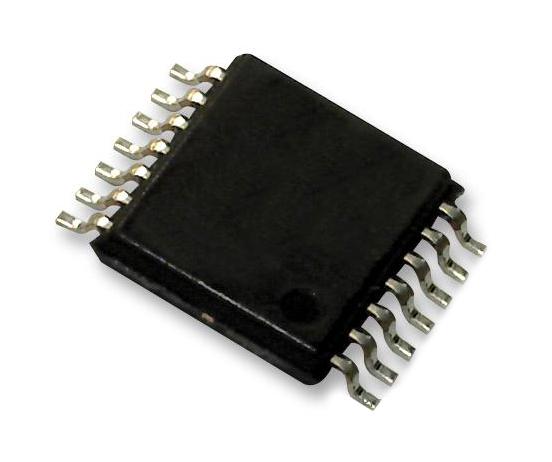

This 8 MHz, quad rail-to-rail input/output operational amplifier housed in a 14-pin TSSOP package is ideal for automotive-grade and precision applications. It features low power consumption around 820 microamperes, high output current of 35mA, ultra-low input bias current of approximately 1pA, and low input offset voltage up to 1.5mV. The device is certified under AEC-Q100, includes internal ESD protection up to 5kV, and offers latch-up immunity. Its high speed, efficiency, and robust safety features make it perfect for automotive, signal conditioning, and active filtering tasks.
STMICROELECTRONICS TSV914AIYPT Automotive Operational Amplifier Specifications:
- Bandwidth: 8 MHz
- Input/Output: Rail-to-rail
- Package: TSSOP 14-pin
- Supply Voltage: 2.5 V to 5.5 V
- Power Consumption: ~820 µA
- Output Current: 35 mA
- Input Bias Current: ~1 pA
- Input Offset Voltage: Max 1.5 mV
- ESD Protection: > 5 kV
- Latch-up Immunity: Yes
- Temperature Range: -40°C to +125°C
- Certification: AEC-Q100 automotive grade
- Dimensions: As per TSSOP-14 package standards
- Features: Low noise, high speed, low power consumption
Buy the Buy STMicroelectronics TSV914AIYPT Automotive Operational Amplifier Part Number TSV914AIYPT Online
Experience the reliability and high performance of the automotive-grade operational amplifier available online. The TSV914AIYPT offers rail-to-rail I/O, a high output current of 35mA, ultra-low input bias current, and low input offset voltage for precision applications. Certified under AEC-Q100, it provides excellent ESD protection exceeding 5kV and latch-up immunity. With efficient power consumption around 820 microamperes, it is suitable for automotive, signal conditioning, active filtering, and portable device applications, ensuring robust and accurate operation in demanding environments.
Get STMicroelectronics TSV914AIYPT today—designed for automotive-grade reliability, high speed, low power, and precision signal processing.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS TSV914AIYPT?
You can click on the BUY or RFQ button to purchase TSV914AIYPT from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part TSV914AIYPT?
You can download the TSV914AIYPT datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of TSV914AIYPT?
STMICROELECTRONICS
