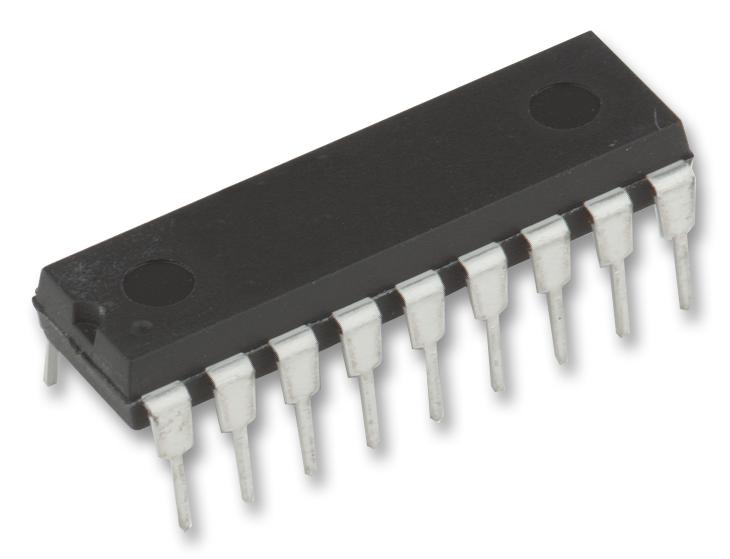

STMICROELECTRONICS ULN2801A Darlington Array
The ULN2801A is an eight Darlington array featuring common emitters and integral suppression diodes, suitable for inductive loads. It can handle a peak load current of 600 mA per channel (500 mA continuous) with an output voltage of up to 50 V. Designed for easy interfacing with standard logic families, it includes input resistors tailored for different voltages, and features an 18-lead DIP package with a straightforward input-opposite-output pinout for simplified circuit layout.
STMICROELECTRONICS ULN2801A Darlington Array Specifications:
- Output Voltage: 50 V
- Maximum Continuous Collector Current: 500 mA
- Peak Load Current per Channel: 600 mA
- Input Voltage Range: Up to 30 V (ULN2802A, ULN2803A, ULN2804A variants)
- Power Dissipation (per Darlington pair): 1 W
- Total Power Dissipation: 2.25 W
- Operating Ambient Temperature Range: -20°C to 85°C
- Storage Temperature Range: -55°C to 150°C
- Junction Temperature: -20°C to 150°C
- Package: DIP-18
- Mechanical Dimensions: Length approx. 23.24 mm, Width approx. 8.5 mm, Pin spacing 2.54 mm
- Environmental Compliance: ECOPACK® grade available
Buy the STMicroelectronics ULN2801A – Reliable Darlington Array for Industrial Applications
Enhance your automation systems with the ULN2801A Darlington array, featuring eight channels with integral suppression diodes. It offers a peak load current of 600 mA per channel, withstands up to 50 V, and is designed for easy integration with logic controllers. Its DIP-18 package simplifies PCB layout, making it ideal for industrial automation, motor control, and inductive load switching. Purchase online today to ensure your projects benefit from high current handling and robust performance with trusted quality.
Buy STMicroelectronics ULN2801A now and experience unmatched reliability and performance in your industrial control projects.
