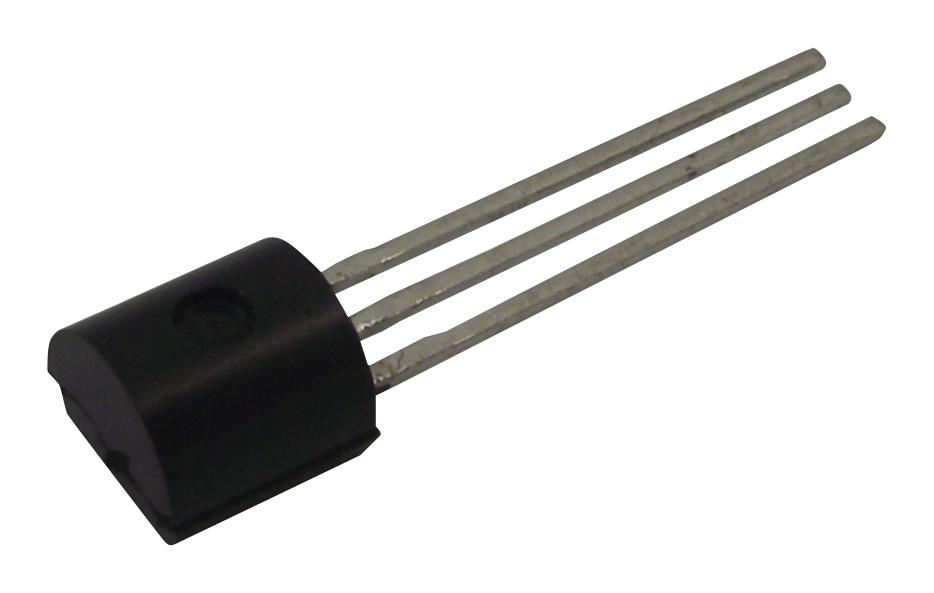

STMICROELECTRONICS STQ1NK80ZRAP High-Voltage Power MOSFET
The SuperMESH™ series features high voltage N-channel MOSFETs optimized for demanding applications, offering extremely high dv/dt capability and excellent avalanche performance. With 800V drain-source voltage rating, low on-resistance, minimized gate charge, and robust avalanche energy, these MOSFETs are ideal for switch mode power supplies, AC adaptors, and battery chargers. They have built-in Zener diodes for enhanced ESD and transient protection, and are available in TO-92, SOT-223, DPAK, and IPAK packages, tested for 100% avalanche robustness and superior reliability.
STMICROELECTRONICS STQ1NK80ZRAP High-Voltage Power MOSFET Specifications:
- Drain-source Voltage: 800V
- Gate-Source Voltage: +30V
- Continuous Drain Current: 0.3A (TO-92), 0.25A (SOT-223), 1.0A (DPAK/IPAK)
- Pulsed Drain Current: 5A
- Total Dissipation: 3W (TO-92), 25W (SOT-223), 45W (DPAK/IPAK)
- VESD (Gate-Source ESD): 1000V
- Gate Threshold Voltage: 3V to 4.5V
- On Resistance (Rds(on)): 13 to 16Ω (Vas=10V, Id=0.54A)
- Package Types: TO-92, SOT-223, DPAK, IPAK
- Thermal Resistance Junction-Case: Max 2.78°C/W
- Thermal Resistance Junction-Ambient: 50°C/W (SOT-223), 100°C/W (DPAK/IPAK)
- Avalanche Current: 1A
- Avalanche Energy: 50mJ
- Measured with optimized strip-based layout for low gate charge and high dv/dt capability.
- Built-in Zener diodes for transient and ESD protection, suitable for demanding switching applications.
Buy the STMicroelectronics Series SuperMESH 800V MOSFET: STQ1NK80ZRAP
Purchase the STMicroelectronics SuperMESH 800V MOSFET online now to benefit from advanced high voltage switching capabilities, low on-resistance, and superior avalanche robustness. This device ensures high performance and reliability in switch mode power supplies, AC adaptors, and battery chargers. With built-in transient protection and multiple packages available including TO-92, SOT-223, DPAK, and IPAK, ordering online guarantees quick delivery and technical support for your demanding electronics projects. Improve efficiency and safety with this trusted component today.
Order your STMicroelectronics SuperMESH 800V MOSFET today and enhance your power conversion projects with high efficiency and reliable switching performance.
