STMICROELECTRONICS XNUCLEOOUT10A1 Industrial Digital Output Module
The X-NUCLEO-OUT10A1 is an industrial digital output expansion board designed for STM32 Nucleo development environments. It utilizes the IPS161HF single high-side switch capable of handling up to 0.7 A and operating within 12 to 60 V range, making it ideal for industrial automation and load switching applications. The board features galvanic isolation, diagnostic LEDs, reverse polarity protection, and complies with EMC standards. Its Arduino™ UNO R3 connectors facilitate easy integration and expansion for multi-channel digital output control, suitable for industrial and embedded system development.
STMICROELECTRONICS XNUCLEOOUT10A1 Industrial Digital Output Module Specifications:
- Operating voltage range: 12-60 V, extended up to 60 V with J1 open
- Maximum load current: 0.7 A per channel
- Isolation Voltage: 3 KV galvanic isolation
- Input voltage: 8V-60V analog supply
- Protection: Reverse polarity protection and overload/overheating safeguards
- Connectors: Arduino UNO R3, Morph connectors for Nucleo
- Standards: EMC compliance IEC61000-4-2, IEC61000-4-3, IEC61000-4-5
- Application compatibility: NUCLEO-F401RE, NUCLEO-G431RB
- Dimensions: Suitable for stacking with other expansion boards, standard development size
- Features: Fast discharge hardware, output sensing, surge protection, diagnostic LEDs

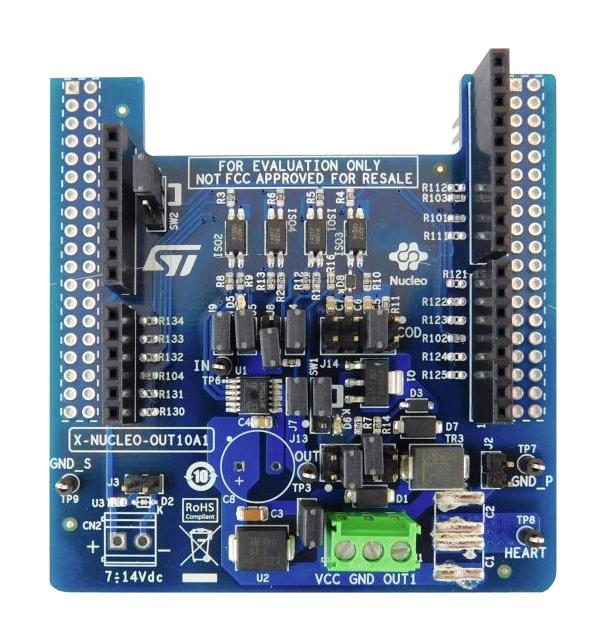

Buy the STMicroelectronics Series X-NUCLEO OUT10A1: Industrial Digital Output Board
Enhance your industrial automation projects with the STMicroelectronics X-NUCLEO OUT10A1 digital output expansion board. Designed for STM32 Nucleo, it supports up to 0.7 A load per channel, operates within 12 to 60 V, and features galvanic isolation for safe and reliable switching of industrial loads. With ready-to-use Arduino™ connectors, diagnostics LEDs, reverse polarity protection, and compliance with international EMC standards, this expansion board simplifies integration into complex control systems. Perfect for developers seeking a dependable, scalable digital output solution.
Buy STMicroelectronics X-NUCLEO OUT10A1 now and experience robust industrial digital output control with high voltage capabilities and comprehensive diagnostics.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS XNUCLEOOUT10A1?
You can click on the BUY or RFQ button to purchase XNUCLEOOUT10A1 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part XNUCLEOOUT10A1?
You can download the XNUCLEOOUT10A1 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of XNUCLEOOUT10A1?
STMICROELECTRONICS
