SWISSBIT SFCE480GW1EB4WDI6F111STD CFexpress Storage Card

The G-20 Series CFexpress Type B cards from Swissbit are high-performance, industrial-grade storage solutions designed for demanding applications like automation, embedded computing, and automotive. Made with 3D NAND flash memory, they support PCIe Gen3 x 2 lanes and NVMe 1.3 command set, offering sequential read speeds up to 1,615 MB/s and write speeds up to 827 MB/s. Their robust construction ensures operation from -40°C to 85°C, with data retention up to 10 years. Features include wear leveling, end-to-end data protection, AES256 encryption on request, and high reliability with over 2 million hours MTBF.

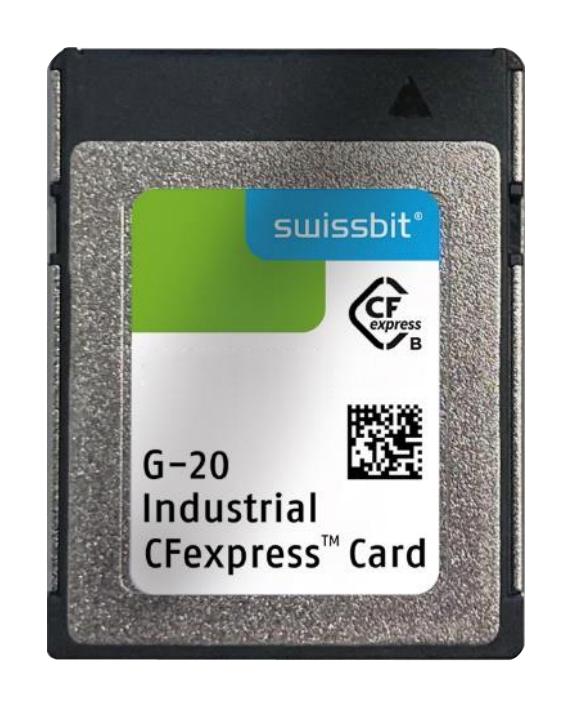

Swissbit Series G-20 CFexpress: SFCE480GW1EB4WDI6F111STD
View SFCE480GW1EB4WDI6F111STDDatasheet [pdf]
Authorized Distributors
Source:Mouser Electronics
Part No:SFCE480GW1EB4WD-I-6F-111-STD
Stock:0
Inv Date:06-16-2026
Price: N/A
Buy/RFQ:

SWISSBIT SFCE480GW1EB4WDI6F111STD CFexpress Storage Card Specifications:

  • Form Factor: CFexpress Type B (38.5mm x 29.6mm x 3.8mm)
  • Capacity Options: 15GB, 30GB, 60GB, 120GB, 240GB, 480GB
  • Interface: PCIe Gen3 x 2 Lanes
  • Command Set: NVMe 1.3
  • Sequential Read Speed: Up to 1,615 MB/s
  • Sequential Write Speed: Up to 827 MB/s
  • Operating Temperature Range: -40°C to 85°C
  • Storage Temperature Range: -40°C to 85°C
  • Voltage: 3.3V
  • Data Retention: 10 Years at start, 1 Year at end of life
  • MTBF: Over 2,000,000 hours
  • Power States: PSo, PS1, PS2, PS3, PSY
  • Supports Wear Leveling, TRIM, Power Fail Protection, AES256 Encryption (on request)
  • Certified RoHS / REACH, Supports firmware updates, E2E data protection

Buy the Swissbit Series G-20 CFexpress: SFCE480GW1EB4WDI6F111STD

Purchase the Swissbit Series G-20 CFexpress storage card online today to leverage its high-speed performance, industrial-grade reliability, and extensive data protection features. Designed for demanding applications like automation, embedded systems, and automotive markets, this card offers fast sequential read and write speeds up to 1,615 MB/s and 827 MB/s respectively. Its wide operating temperature range ensures durability in extreme conditions, while advanced features like wear leveling, E2E data protection, and AES256 encryption on request maximize your data security and integrity. Secure your project now with this high-performance storage solution.

Order your Swissbit Series G-20 CFexpress card today and enhance your industrial and automotive applications with high-speed, reliable storage.

Frequently Asked Questions

Where can I buy SWISSBIT SFCE480GW1EB4WDI6F111STD?

You can click on the BUY or RFQ button to purchase SFCE480GW1EB4WDI6F111STD from an authorized SWISSBIT distributor.

How do I troubleshoot issues or seek technical support for part SFCE480GW1EB4WDI6F111STD?

You can download the SFCE480GW1EB4WDI6F111STD datasheet or visit the SWISSBIT website for support.

Who is the manufacturer of SFCE480GW1EB4WDI6F111STD?

SWISSBIT
