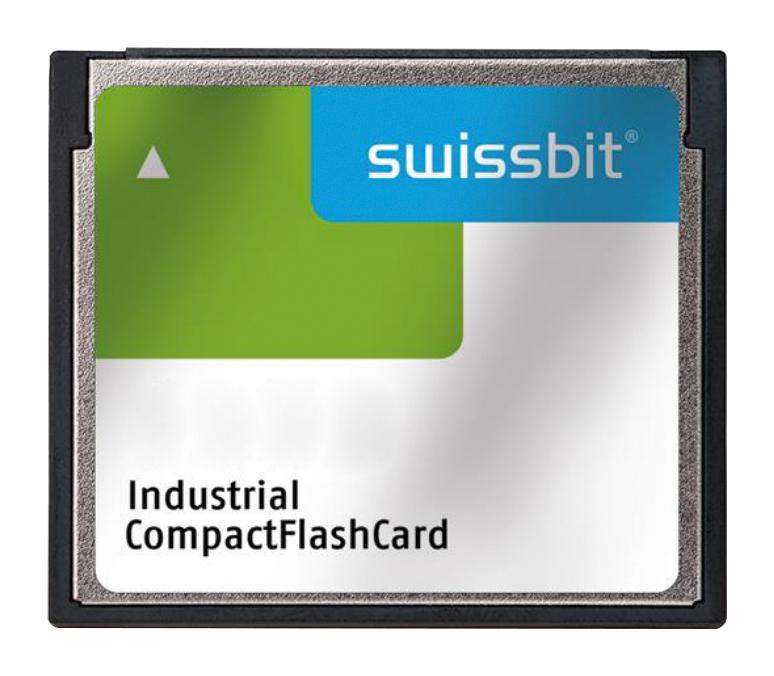

SWISSBIT SFCF032GH1AF2TOIQT527STD Industrial CompactFlash Card

The Swissbit C-500 is an industrial-grade CompactFlash card offering capacities from 128MB to 64GB. It features high-performance UDMA6 burst speeds up to 133MB/s, sequential read/write up to 64/44MB/s, and robust reliability with MTBF exceeding 3 million hours. Designed for industrial and embedded applications, it supports operating temperatures from -40°C to 85°C, low power consumption, and advanced error correction. The card complies with CompactFlash 5.0 standards, integrates a high-performance 32-bit RISC controller, and supports features like wear leveling, bad block management, and S.M.A.R.T.

Swissbit SFCF032GH1AF2TOIQT527STD – Reliable Industrial CompactFlash Card for Embedded Applications
View SFCF032GH1AF2TOIQT527STDDatasheet [pdf]
Authorized Distributors
Source:Mouser Electronics
Part No:SFCF032GH1AF2TO-I-QT-527-STD
Stock:18
Inv Date:06-16-2026
Price: Unit price: $1398.37
Buy/RFQ:

SWISSBIT SFCF032GH1AF2TOIQT527STD Industrial CompactFlash Card Specifications:

  • Capacities: 128MB to 64GB
  • Form Factor: CompactFlash Type I (36.4 mm x 42.8 mm x 3.3 mm)
  • Performance: Sequential Read up to 64MB/s, Write up to 44MB/s, Burst Transfer Rate up to 133MB/s UDMA6
  • Temperature Range: Operating -40°C to 85°C, Storage -50°C to 100°C
  • Voltage: 3.3V ±10%, 5V ±10%
  • Current (Active Read): 95-100mA, (Active Write): 100mA, Idle: 4.5mA
  • Reliability: MTBF > 3 million hours, Data Retention 10 years at start, 1 year at end of life
  • Endurance: TBW depends on capacity, with enterprise-level endurance measures
  • Compliance: CompactFlash Specification 5.0, CE, FCC, RoHS, WEEE
  • Mechanical: Gold-plated contacts, protected against shocks and vibration, dimensions conform to industry standards
  • Features: Wear leveling, bad block management, SMART support, in-field firmware updates

Buy the Swissbit SFCF032GH1AF2TOIQT527STD – Reliable Industrial CompactFlash Card for Embedded Applications

Get your Swissbit industrial CompactFlash card, capacity 32GB, with high-performance UDMA6 speeds up to 133MB/s, and extended temperature range from -40°C to 85°C. Designed for rugged environments, it offers outstanding reliability, low power consumption, and features like wear leveling, bad block management, and S.M.A.R.T. support. Perfect for industrial, embedded, and data-critical applications requiring fast, durable storage in harsh conditions. Buy online now for fast delivery and dependable operation.

Order your Swissbit SFCF032GH1AF2TOIQT527STD industrial CompactFlash card today and ensure dependable high-speed storage for rugged embedded projects.

Frequently Asked Questions

Where can I buy SWISSBIT SFCF032GH1AF2TOIQT527STD?

You can click on the BUY or RFQ button to purchase SFCF032GH1AF2TOIQT527STD from an authorized SWISSBIT distributor.

How do I troubleshoot issues or seek technical support for part SFCF032GH1AF2TOIQT527STD?

You can download the SFCF032GH1AF2TOIQT527STD datasheet or visit the SWISSBIT website for support.

Who is the manufacturer of SFCF032GH1AF2TOIQT527STD?

SWISSBIT
