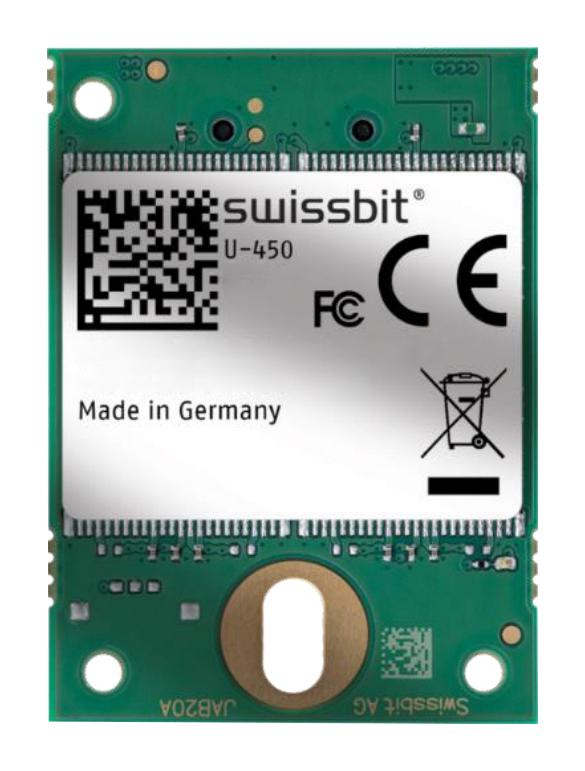

SWISSBIT SFUI016GJ2AB1TOIQT2A1STD Industrial USB Flash Drive

The Swissbit U-450 is a 16GB industrial-grade USB flash drive designed for embedded and industrial applications. It features a page-based Flash Translation Layer for durability and performance, supporting USB 2.0 high-speed with backward compatibility. The drive includes a 2.54mm keyed connector for internal 10-pin USB interfaces, with dimensions of 26.65mm by 36.8mm. It uses subpage-based flash management to increase endurance and maintain high random access speeds, making it ideal for demanding industrial environments with long data retention of up to 10 years. Firmware supports in-field updates and detailed S.M.A.R.T. features.

Swissbit U-450 Reliable Industrial USB Flash Drive for Embedded Applications
View SFUI016GJ2AB1TOIQT2A1STDDatasheet [pdf]
Authorized Distributors
Source:DigiKey
Part No:SFUI016GJ2AB1TO-I-QT-2A1-STD
Stock:8
Inv Date:06-15-2026
Price: Unit price: $296
Buy/RFQ:
Source:Mouser Electronics
Part No:SFUI016GJ2AB1TO-I-QT-2A1-STD
Stock:0
Inv Date:06-16-2026
Price: N/A
Buy/RFQ:

SWISSBIT SFUI016GJ2AB1TOIQT2A1STD Industrial USB Flash Drive Specifications:

  • Memory Capacity: 16GB
  • Form Factor: Standard PCB 36.8mm x 26.65mm
  • Connector Type: 2.54mm pitch, 7.5mm long; optional 2.00mm pitch, 3.68mm long
  • Connector Compatibility: Internal 10-pin USB interface
  • Flash Management: Page-based Flash Translation Layer, subpage-based flash management
  • Dimensions: 26.65mm x 36.8mm, component height max. 1.2mm on connector side and 1.4mm on flash side
  • Operating Temperature: 0°C to 70°C (commercial), -40°C to 85°C (industrial)
  • Data Retention: Up to 10 years
  • Supported Standards: USB 2.0 high-speed; backward compatible with USB 1.1
  • Indicator: Optional LED for operation status
  • Firmware: Supports in-field firmware updates
  • Special Features: S.M.A.R.T. support, flash wear leveling, endurance-optimized
  • Mounting Holes: Optional oval hole for mechanical fixture

Buy the Swissbit U-450 Reliable Industrial USB Flash Drive for Embedded Applications

Experience reliable data storage with the Swissbit U-450 industrial USB flash drive. Designed for embedded and industrial applications, it features durable flash management, high-speed USB 2.0 support, and long-term data retention up to 10 years. Its compact dimensions, optional LED indicator, and support for in-field firmware updates make it ideal for harsh environments. Easy to install with internal 10-pin interface and mounting options, ensuring seamless integration into industrial systems. Trust Swissbit for performance and longevity.

Get Swissbit U-450 today—built for durability, high-speed data transfer, and demanding industrial environments.
