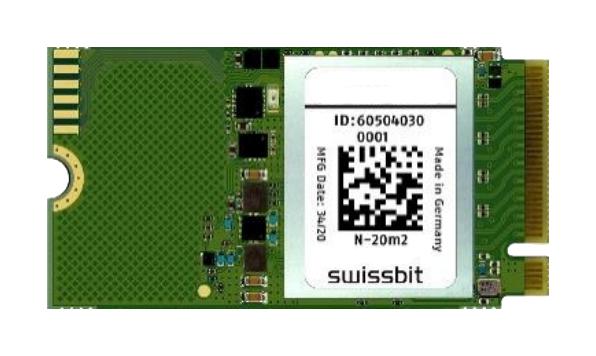

SWISSBIT SFPC015GM1EC1TOI5E116STD Industrial M.2 NVMe SSD
The Swissbit N-20m2 SSD is a high-performance NVMe M.2 solid-state drive utilizing 3D NAND technology. It supports PCIe 3.1 interface, offering sequential read speeds up to 1,773 MB/s and write speeds up to 827 MB/s. Designed for industrial and commercial applications, it features advanced data protection, end-to-end encryption, and reliability with an MTBF of over 2 million hours. Available in multiple capacities from 15 GB to 480 GB, the SSD supports robust environmental conditions, low power consumption, and high endurance with data retention up to 10 years at 40°C. Its compact form factor, durable construction, and compliance with industry standards make it ideal for embedded systems and enterprise use.
SWISSBIT SFPC015GM1EC1TOI5E116STD Industrial M.2 NVMe SSD Specifications:
- Form Factor: PCI Express M.2 (2230/2242/2280), 30/42/80 mm x 22 mm x 2.63 mm
- Capacities: 15 GB, 30 GB, 60 GB, 120 GB, 240 GB, 480 GB
- Interface: Gen3 x2, 4 Lanes, NVMe 1.3 compliance
- Sequential Read Speed: Up to 1,773 MB/s
- Sequential Write Speed: Up to 827 MB/s
- Random Read: Up to 140,000 IOPS
- Random Write: Up to 131,000 IOPS
- Operating Temperature Range: -40°C to 85°C (industrial), 0°C to 70°C (commercial)
- Storage Temperature Range: -40°C to 85°C
- Power Supply Voltage: 3.3V, 1.8V, 0.9V
- Data Retention: 10 Years at 40°C (initial), 1 Year at End of Life
- MTBF: Over 2,000,000 hours
- Endurance: Client >190 TBW
- Dimensions: Length 30/42/80 mm, Width 22 mm, Thickness max 2.63 mm
- Certifications: RoHS, REACH, EMC, WEEE
- Shock/Vibration: 1500 g / 50 g
Buy the Swissbit SFPC015GM1EC1TOI5E116STD – Reliable NVMe SSD for Industrial Applications
Purchase the Swissbit industrial M.2 NVMe SSD today and experience exceptional speed, robust data protection, and proven reliability suitable for demanding embedded and enterprise applications. Featuring a compact form factor and support for PCIe Gen3 x2 lanes, this SSD offers high sequential and random performance with endurance over 190 TBW for 240 GB models. Perfect for systems requiring durable and fast storage, order online now to enhance your computing environment with a trusted, quality storage solution tailored for industrial use.
Get Swissbit SFPC015GM1EC1TOI5E116STD today—built for high-speed data transfer and industrial durability.
Frequently Asked Questions
Where can I buy SWISSBIT SFPC015GM1EC1TOI5E116STD?
You can click on the BUY or RFQ button to purchase SFPC015GM1EC1TOI5E116STD from an authorized SWISSBIT distributor.
How do I troubleshoot issues or seek technical support for part SFPC015GM1EC1TOI5E116STD?
You can download the SFPC015GM1EC1TOI5E116STD datasheet or visit the SWISSBIT website for support.
Who is the manufacturer of SFPC015GM1EC1TOI5E116STD?
SWISSBIT
